EDMONTON
 Alberta . Canada

Edmonton LRT Line 2001 © UrbanRail.Net

 System

Edmonton has a population of 750,000 in the city and 1.4 million in the metropolitan area and was the first North American city with less than a million inhabitants to build a light rail system, which runs underground in central areas, just like a European Premetro or Stadtbahn system.

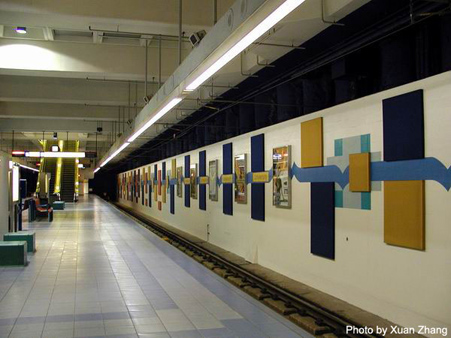

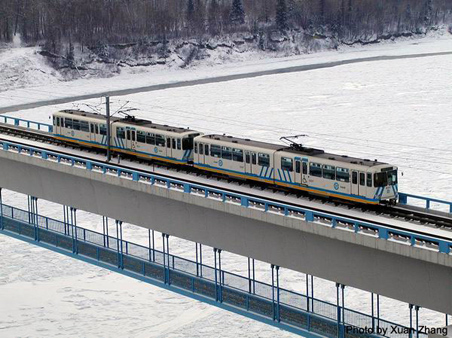

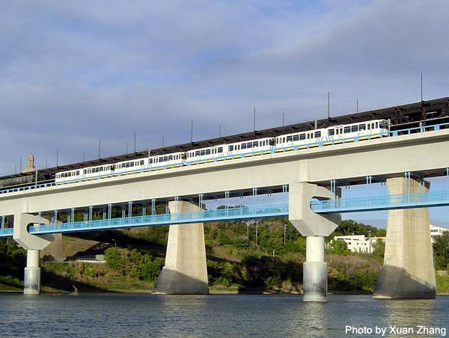

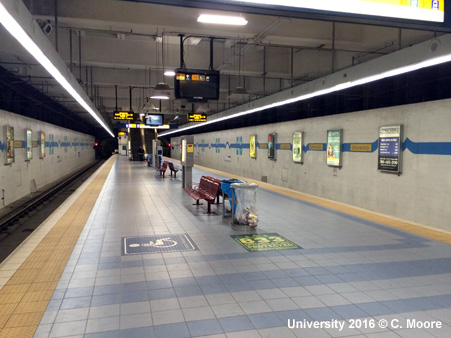

Construction on the initial LRT line began in 1974 at 95 Street and 106 Avenue. The first segment between Belvedere and Central was inaugurated in April 1978, in time for Commonwealth Games. The line follows a CN right-of-way (National Railways) from Belvedere to Stadium, from where it continues in a new tunnel to Central station. In 1981 it was extended north to Clareview, and later in stages through the city centre: to Corona in 1983 and to Grandin in 1989. In 1992, the light rail trains reached the deepest station of the line, at 23 m below street level, at University of Alberta, after crossing the North Saskatchewan River on the Dudley B. Menzies LRT Bridge, which has a lower level for pedestrians and cyclists.

Since 1983, all stations have been built with full accessibility for the disabled, other stations are currently being upgraded. In the late 1990's Clareview and Belvedere stations were covered and their platforms lengthened to allow the use of 5-car trains. While the underground sections have full metro standards, there are level crossings along the surface sections.

After the completion of the South LRT project in April 2010, the LRT line has a total length of 20 km (4.4 km underground), with 6 underground and 9 surface stations.

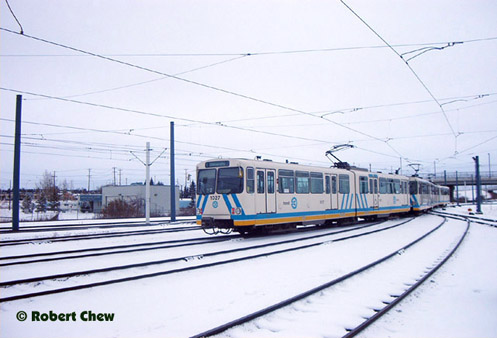

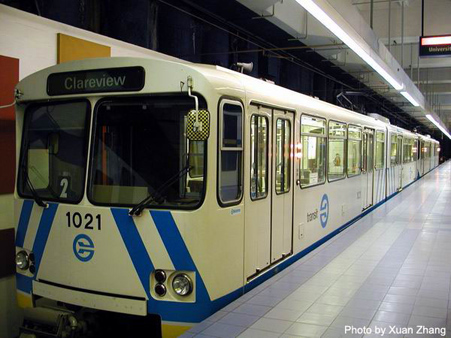

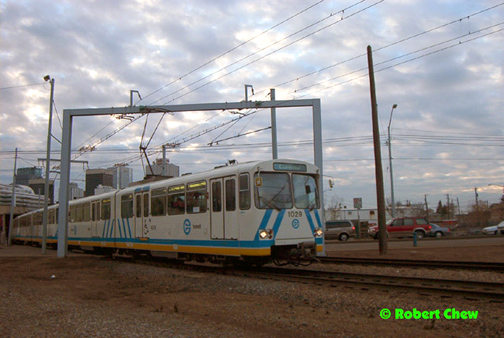

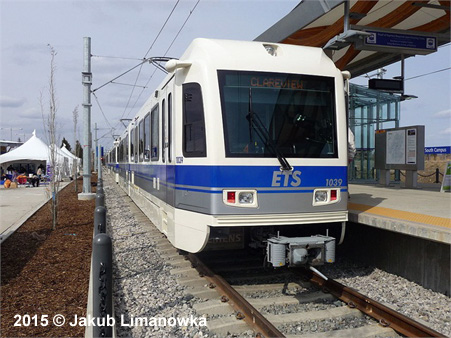

Initially, there were 37 light-rail vehicles in use (24.3 m long, 2.65 m wide, built by Siemens-Duewag, similar to the 'U2' vehicles in Frankfurt and San Diego). In June 2008, Siemens delivered the first of 37 SD 160 type light rail vehicles.

In September 2015, when the "Metro Line" opened to NAIT (Northern Alberta Institute of Technology) in the north of the city, the original line became known as the "Capital Line".

 Photos

Edmonton Light Rail Edmonton Light Rail Edmonton Light Rail Edmonton Light Rail Edmonton Light Rail Edmonton Light Rail Edmonton Light Rail Edmonton Light Rail Edmonton Light Rail Edmonton Light Rail Edmonton Light Rail Edmonton Light Rail Edmonton Light Rail Edmonton Light Rail Edmonton Light Rail

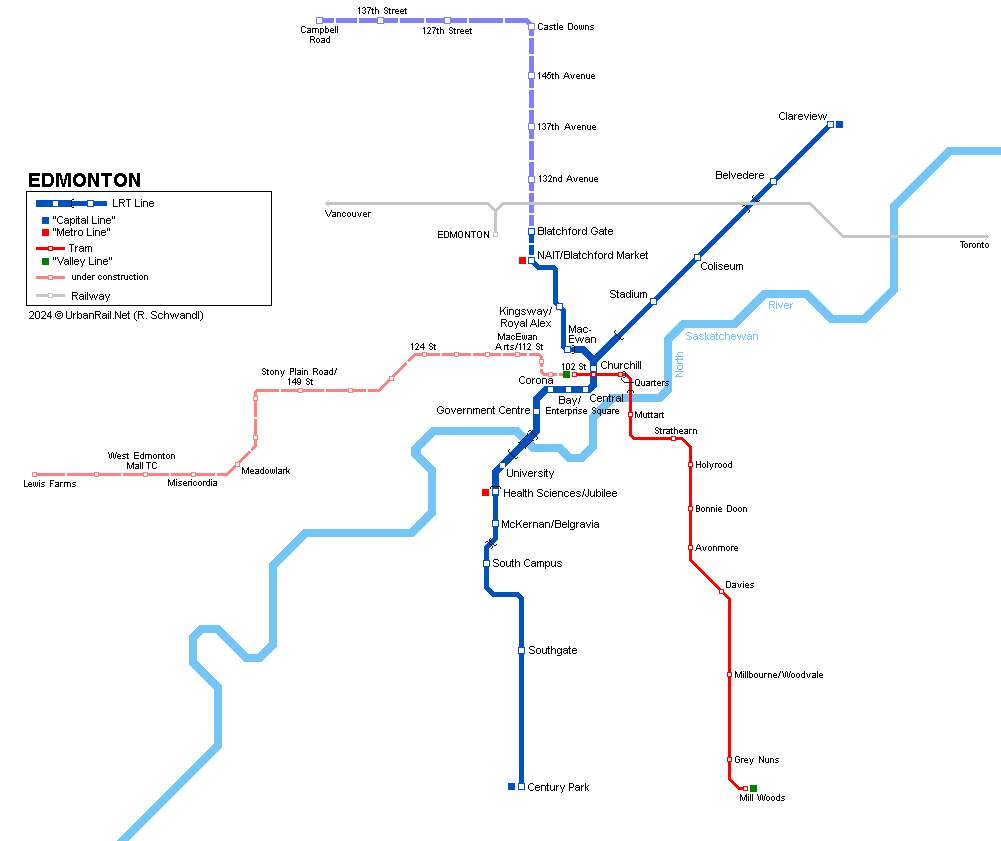

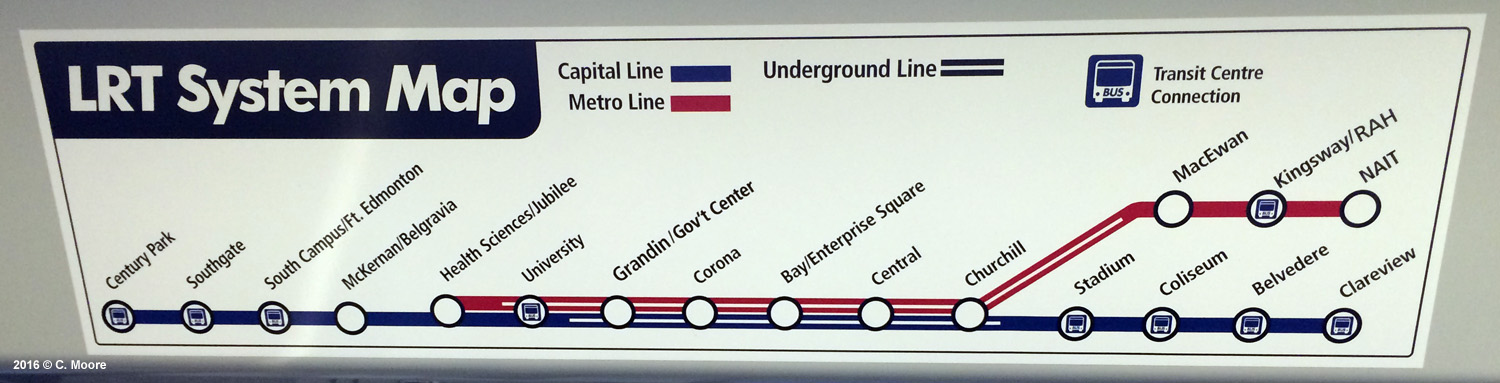

Edmonton Light Rail map

 History

22 April 1978: Belvedere - Central (6.9 km)
26 April 1981: Belvedere - Clareview (2.2 km)
June 1983: Central - Corona (0.8 km)
Sept. 1989: Corona - Grandin (now Government Centre) (0.8 km)
23 Aug 1992: Grandin - University (1.6 km)
01 Jan 2006: University - Health Sciences (0.8 km)
26 Apr 2009: Health Sciences - South Campus (2.0 km)

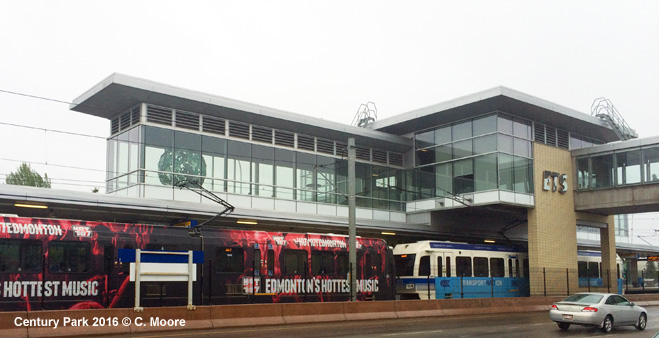

24 Apr 2010: South Campus - Century Park (5.3 km)

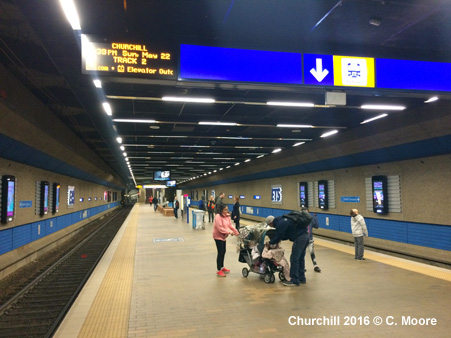

06 Sept 2015: Churchill - NAIT [Metro Line] (3.3 km)



 Projects

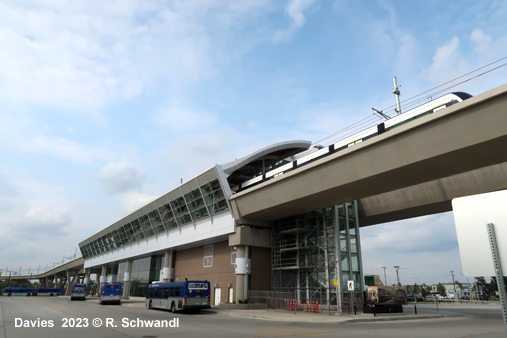

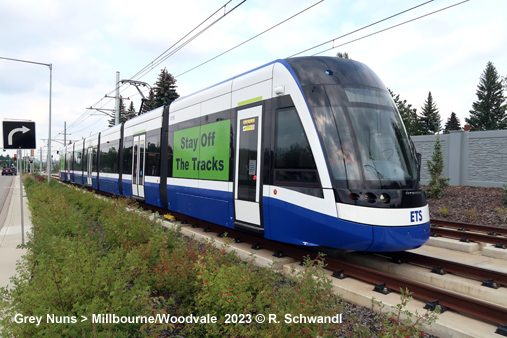

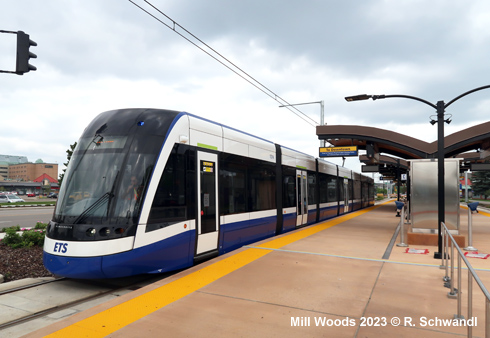

The Valley Line will become rather a modern European-style tramway than an American light rail system, running 13 km from downtown Edmonton to Mill Woods from 2023. [Project Website]

In a second stage to be extended westwards to Lewis Farms to form a 27 km cross-city line.

The Metro Line is being extended northwest in various stages.
