Delhi Metro Map © UrbanRail.Net


As of March 2018, the Delhi Metro system comprises 8 lines:

The Red Line (initially line 1) extended its total length to 24.4 km (21 stations) with the eastern extension to Dilshad Garden on 4 June 2008. The new section runs on a viaduct, parallel to the mainline tracks.

The previous extension brought the line length to 21.3 km (18 stations) on 31 March 2004 with the inauguration of the Inder Lok - Rithala section. The entire section is elevated and runs on a viaduct constructed mostly on road medians.

The first two sections of the Red Line were opened on 25 December 2002 (Shahdara to Tis Hazari - 8.3km, 6 stations) and 3 October 2003 (Tis Hazari to Inder Lok - 4.1km, 4 stations) respectively. After two extensions, the line is now 25 km long.

The Yellow Line (line 2) which was opened in two stages between Vishwa Vidyalaya (Delhi University, North Campus) and Central Secretariat, used to be underground for its entire 11 km length. The route passes through the city centre, or the central business district at Connaught Place. The stations along the route were built by cut-and-cover technique except at Chawri Bazar where tunneling was used. Metro stations are located 12.85 m below ground level except at the highly congested Chawri Bazar station which is located at 20 m below ground. In February 2009, the Yellow Line was extended north to Jahangirpuri, including the first four elevated stations on this line. The total length of the Jahangirpuri - Central Secretariat is 17.4 km. In June 2010, the first 14.5 km part of a southern extension was brought into service, taking the Metro across the city border into Gurgaon. With the 12.5 km missing section opened in September 2010, line 2 is now 45 km long.

The Blue Line (lines 3 & 4) runs mostly elevated or at grade with a short underground section in central New Delhi. It is currently (07/2011) about 60 km long. The Blue Line intersects with the Yellow Line at Connaught Place, but does not provide interchange with Line 1.

The Green Line (line 5) is the first standard-gauge metro line in Delhi; it is 29.6 km long (Inderlok to Mundka) and completely elevated.

The mostly elevated Violet Line (line 6) opened in various stages from 2010, followed by the Magenta Line (line 8) in 2017 and the Pink Line (line 7) in 2018.

The 22.5 km Airport Express Line (Orange Line) opened in February 2011 after some delays and connects Indira Gandhi International Airport to New Delhi railway station.

 Rapid Metro Gurugram (Gurgaon)

Rapid Metro GurgaonRapid Metro is a 5.1 km elevated standard-gauge mostly single-track loop line, which runs from Sikanderpur Metro station on Delhi Metro's Yellow Line, to serve CyberCity Gurugram (Gurgaon). The system was built as Siemens turnkey project and started regular service on 14 Nov 2013. (Official Website)

Construction of a second phase (7 km, 5 stations) along Golf Course Road began in 2013 and opened on 31 March 2017.

More photos

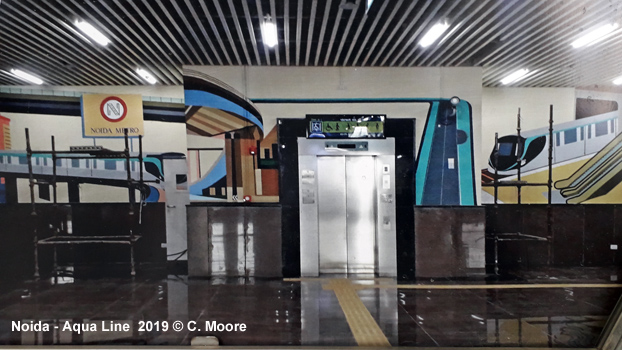

 Noida Metro Rail

Similar to the Rapid Metro in Gurugram (Gurgaon), the 29.7 km Noida Metro Rail line, located in the state of Uttar Pradesh, will be a separate metro system in the Greater Delhi area, scheduled to open in spring 2018. It will be connected to the Delhi Metro network via the forthcoming Blue Line extension. (Official Website)



Delhi Metro © Richard StedallThe planning for the Metro in Delhi had started in the 1950s. Numerous studies were conducted for studying the feasibility of a rail based mass transit system. The first steps towards the construction of the metro were only initiated in 1995 when the Delhi Metro Rail Corporation (DMRC) was registered. Physical work on the project started on October 1, 1998.

25 Dec 2002: Shahdara - Tis-Hazari (Red Line)
03 Oct 2003: Tis Hazari - Inder Lok (Trinagar) (Red Line)
31 Mar 2004: Inder Lok - Rithala (Red Line)
19 Dec 2004: Vishwa Vidyalaya (Delhi University) - Kashmere Gate (Yellow Line), 4 km
03 July 2005: Kashmere Gate - Central Secretariat (Yellow Line), 7 km

31 Dec 2005: Dwarka - Barakhamba (Blue Line), 22.9 km
01 Apr 2006: Dwarka - Dwarka Sector 9 (Blue Line), 6.5 km
11 Nov 2006: Barakhamba - Indraprastha (Blue Line), 4.0 km
04 Jun 2008: Shahdara - Dilshad Garden (Red Line), 3.1 km
04 Feb 2009: Vishwa Vidyalaya - Jahangirpuri (Yellow Line), 6.4 km
10 May 2009: Indraprastha - Yamuna Bank (Blue Line), 2.1 km
13 Nov 2009: Yamuna Bank - Noida City Centre (Sector 32) (Blue Line), 13.1 km
08 Jan 2010: Yamuna Bank - Anand Vihar (Blue Line), 6.3 km
03 Apr 2010: Inderlok - Mundka (Green Line), 15.1 km
21 June 2010: Qutab Minar - Huda City Centre (Yellow Line), 14.5 km
26 Aug 2010: Chattarpur station added (Yellow Line)
03 Sept 2010: Central Secretariat - Qutub Minar (Yellow Line), 12.5 km
03 Oct 2010: Central Secretariat - Sarita Vihar (Violet Line), 15 km
30 Oct
2010: Dwarka Sector 9 - Dwarka Sector 21(Blue Line), 2.8 km
14 Jan 2011: Sarita Vihar - Badarpur (Violet Line), 5.1 km
23 Feb 2011: New Delhi Railway Station - Dwarka Sec 21
(Airport Express Line), 22.5 km
14 July 2011: Anand Vihar - Vaishali (Blue Line), 2.6 km
15 Aug 2011: Aerocity and Dhaula Kuan stations added (Airport Express Line)
27 Aug 2011: Kirti Nagar - Ashok Park Main (Green Line), 3.3 km

14 Nov 2013: Sikanderpur - Cyber City (Rapid Metro), 5.1 km
26 Jun 2014: Central Secretariat - Mandi House (Violet Line), 3 km
08 June 2015: Mandi House - ITO (Violet Line), 0.9 km
06 Sept 2015:
Badarpur - Escorts Mujesar (Violet Line), 14 km
10 Nov 2015:
Jahangirpuri - Samaypur Badli (Yellow Line), 4.4 km
31 Mar 2017: Sikanderpur - Sector 55-56 (Rapid Metro), 7 km
28 May 2017: ITO - Kashmere Gate (Violet Line), 5.2 km
25 Dec 2017: Kalkaji Mandir - Botanical Garden (Magenta Line), 12.6 km
14 Mar 2018: Majlis Park Durgabai Deshmukh South Campus (Pink Line), 21.6 km
29 May 2018: Kalkaji Mandir - Janakpuri West (Magenta Line), 24.8 km
24 Jun 2018: Mundka - Bahadurgarh (Green Line), 11.2 km
06 Aug 2018: Durgabai Deshmukh South Campus - Lajpat Nagar (Pink Line), 8.1 km


For updated details on current and future projects click here

See map as displayed at Kashmere Gate station showing planned lines (304K)



Left: L2 Chandni Chowk, right: L3 Rajiv Chowk

L3 Rajiv Chowk
