Bulgaria's capital has 1.3 million inhabitants and lies in the west of the country.

Following a masterplan approved during Communist times, the Sofia Metro shows a typical Soviet three-diameter layout:

The first line runs from Obelya through Lyulin to the city centre and from there to Mladost. It opened in 1998 after some 20 years of construction work, with through operation from Obelya to Mladost finally starting in 2009. Later, a branch from Mladost to the airport was added.

A second line, running north-south via the city main railway station, was built in only four years and opened in summer 2012. Two stations with the tunnel between them were constructed in the 1980s - "NDK" (National Palace Of Culture) and "Museum of the Earth and People" (HEMUS), the latter having eventually opened as "European Union" to honour the source of funds for this project. The second line has since been operated jointly with the first line, so Obelya is not a real terminus, but trains continue on the respective other line (since Aug. 2020, M2 <> M4)

Average distance between stations is 1100 m; platform length - 105-120 m; operational speed of the trains is 90km/h; track gauge - 1435 mm; power supply - third rail at 825 V DC.

After two southern extensions were added to the original line in 2015, the Sofia Metro was operated with the following routes:

M1 - Slivnitsa — Business Park Sofia
M2 - Airport — Vitosha (running through Serdika twice)

In conjunction with the opening of the third line, the layout of the original network was changed, and M2 was (visually) split into two lines, although through operation continues at Obelya:

M1 - Slivnitsa — Business Park Sofia
M2 - Obelya — Vitosha
M4 - Obelya — Sofia Airport

Total original network length (M1, M2, M4 - 2020) - 37.5 km:

Obelya - Mladost 1: 16.1 km
Obelya - Vitosha: 11.5 km
Mladost 1 - Airport: 7.1 km
Mladost 1 - Business Park Sofia: 2.8 km

28 Jan 1998: M1 Slivnitsa — Konstantin Velichkov (6.4 km)
17 Sept 1999: M1 Konstantin Velichkov — Opalchenska
31 Oct 2000: M1 Serdika — Opalchenska
20 Apr 2003: M1 Slivnitsa — Obelya (1.8 km)
08 May 2009: M1 Vasil Levski Stadium — Mladost 1 (5.6 km)
08 Sept 2009:M1 Serdika — Vasil Levski Stadium
25 April 2012: M1 Mladost 1 — Tsarigradsko Shose (2.2 km)
31 Aug 2012: M2 Obelya — James Bourchier (10.1 km)
02 Apr 2015: M1 Tsarigradsko Shose — Letishte/Airport (5 km)
08 May 2015: M1 Mladost 1 — Business Park Sofia (2.8 km)
20 July 2016: M2 James Bourchier — Vitosha (1.3 km)

While the other three lines are interlaced, the third line is completely independent. After construction had started in 2016, the first section opened in August 2020. It runs east-west through the city, and stations feature platform screen doors. It was originally proposed as a 'light metro', but eventually became a full-scale metro with 105 m long platforms, though using overhead power supply. M3 is operated with 30 Siemens Inspiro trains.

26 Aug 2020: Krasno Selo — Hadzhi Dimitar (7.8 km)
24 Apr 2021: Krasno Selo — Gorna Banya (4.0 km)
14 Aug 2026: Hadzhi Dimitar — Gen. Vladimir Vazov (3.2 km)

Tram Atlas Südosteuropa | Southeastern Europe

This illustrated atlas includes every tramway and metro city in Croatia, Bosnia & Herzegovina, Serbia, Romania, Bulgaria and Greece. For each city, there is a detailed system map showing all stops, loops, single-track sections, depots etc. Short texts describe the history, operation and special features of every system. Most of the current vehicles are depicted in the numerous colour photographs. .

Zagreb, Osijek; Sarajevo; Beograd; Arad, Braila, Bucuresti, Cluj-Napoca, Craiova, Galati, Iasi, Oradea, Ploiesti, Resita, Timisoara; Sofia; Athina & Thessaloniki

by Andrew Phipps & Robert Schwandl
160 pages, 17x24 cm, approx. 300 colour images, network maps, text Deutsch/English
06/2023 - ISBN 978 3 936573 69 5, EUR 24.50

More info here!

Metropolitan of Sofia (Official Site)

Sofia Transport (Timetables & Maps)

Sofia Metro at Wikipedia

Transport and Metro Info from City Server

Metro Sofia (Private Site)

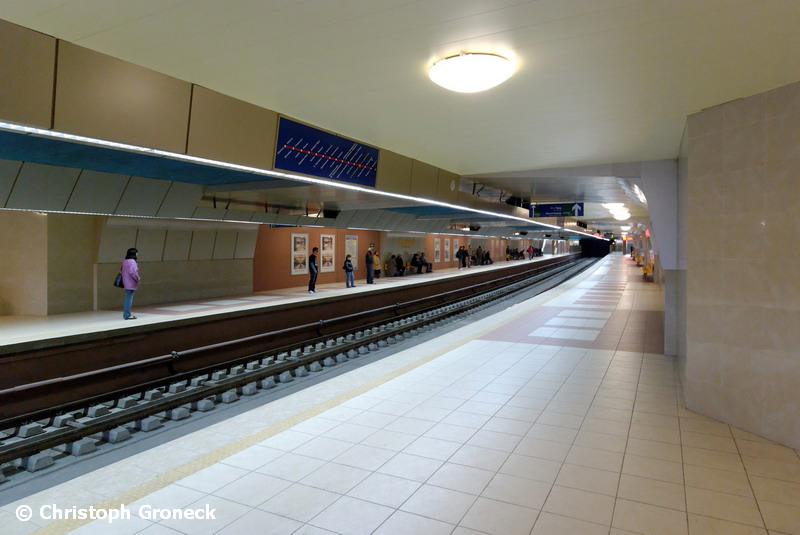

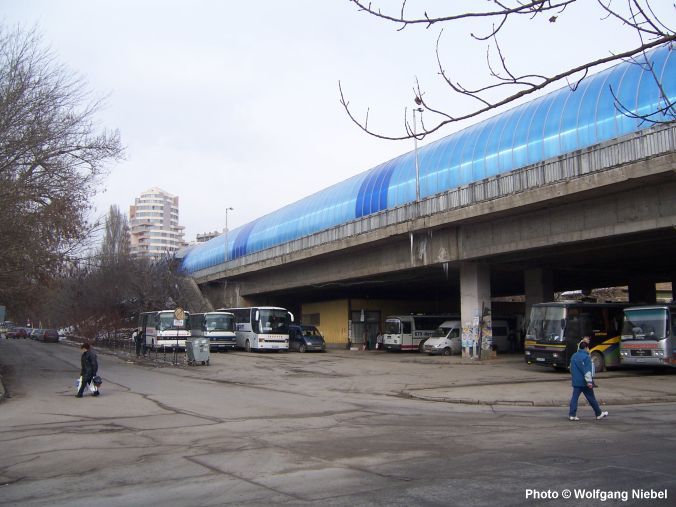

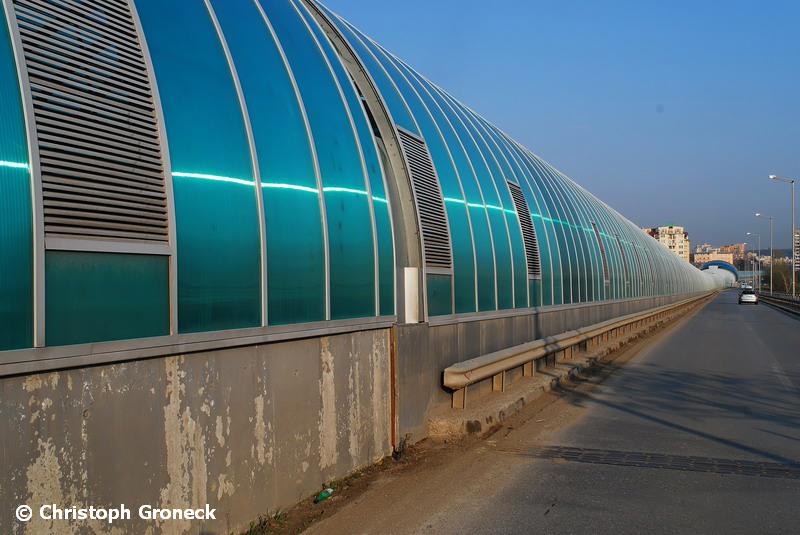

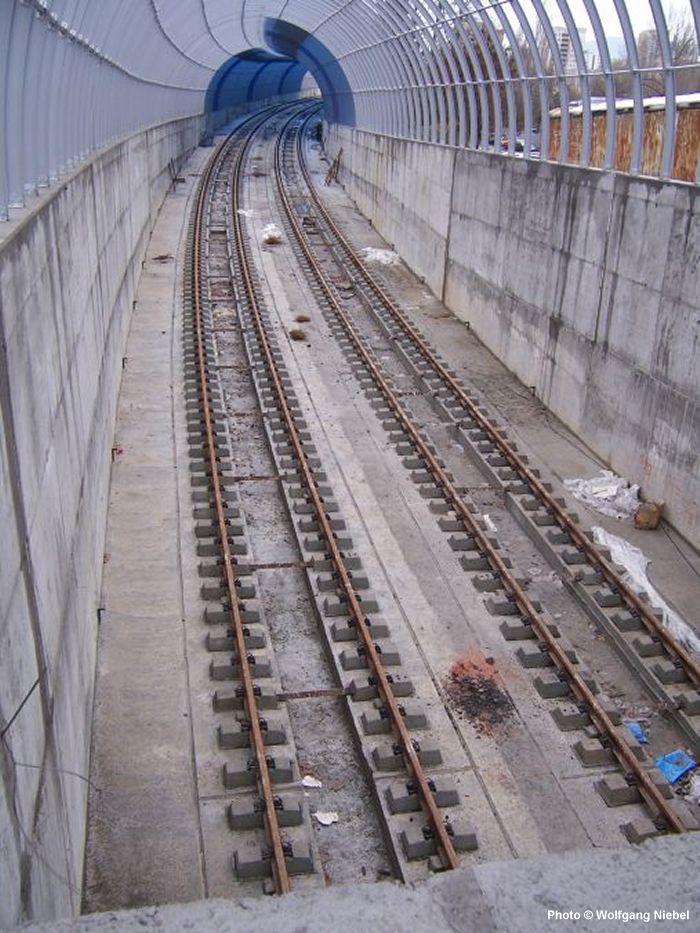

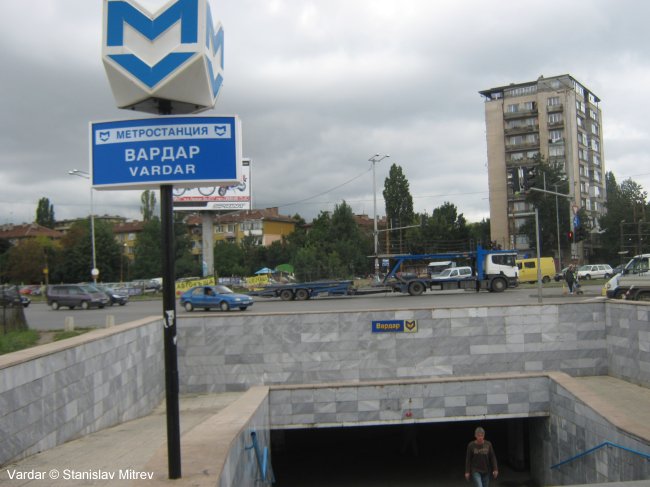

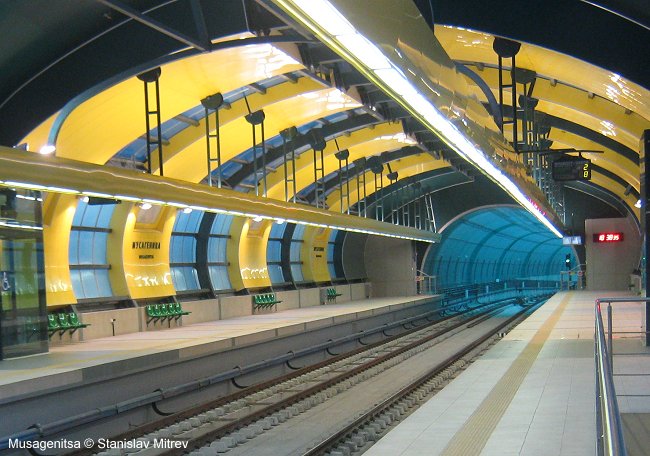

(1) Musagenitsa; (2) Vardar © St. Mitrev; (3)(4) Construction near Interpred 2005 Wolfgang Niebel; (5) Musagenitsa > Mladost 1 © Ch. Groneck
