DORTMUND
 Nordrhein-Westfalen . Germany

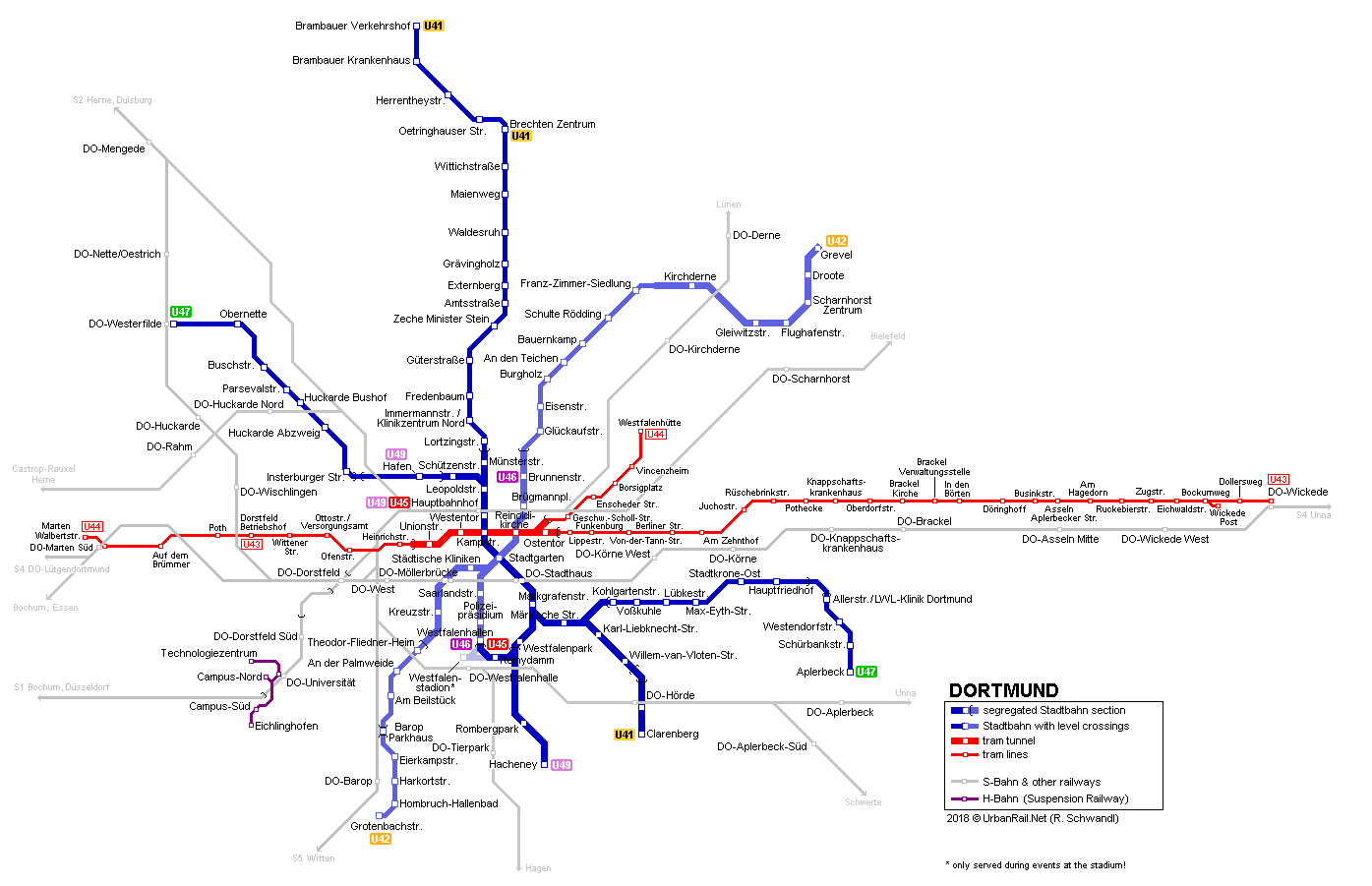

Dortmund Stadtbahn Map

 Stadtbahn

Stadtbahn logo © R. SchwandlDortmund has 593,000 inhabitants and lies at the eastern edge of the large Rhine-Ruhr conurbation integrated in the VRR tariff system (Verkehrverbund Rhein Ruhr).

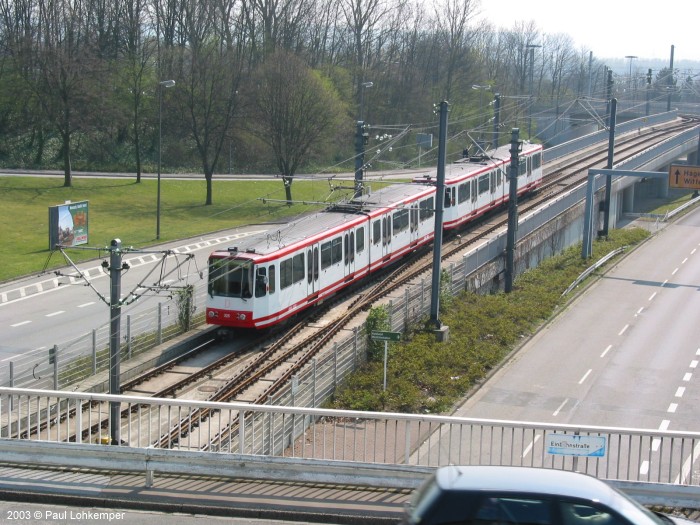

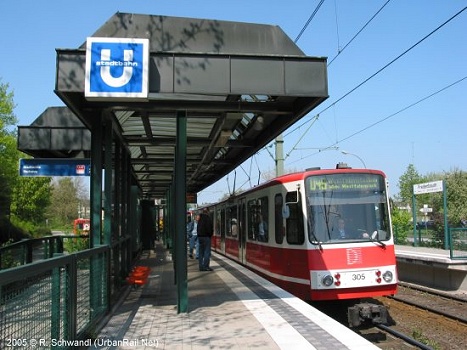

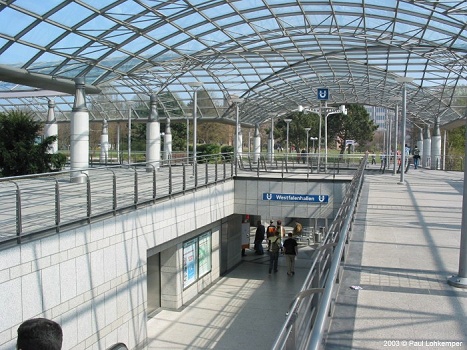

The general Rhein-Ruhr Stadtbahn network designed in the early 1970's included three routes for the Dortmund area. Route 1 runs from northwest to southeast and route 2 from northeast to southwest. These two routes are directly linked at Westfalenhallen, from where U46 trains continue their journey on line U45 to Hauptbahnhof and vice versa. Until 1999, on U45 older single unit trams were still used between Brambauer and Stadthaus, so in some stations a low platform section could still be seen, which have now been raised. On 16 Nov. 1999, 90 cm high platforms were brought into service on the route between Fredenbaum and Brechten, the remaining section to Brambauer was also adapted to Stadtbahn-standard and reopened on 6 Jan 2002. The only low-floor platforms can be seen on the eastern U47 to Aplerbeck.

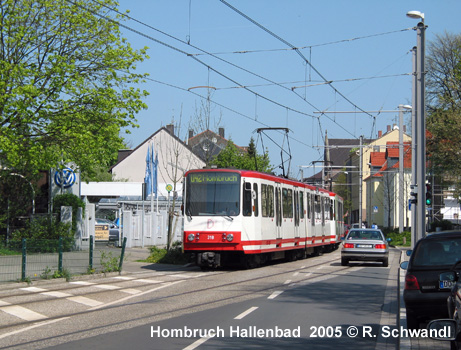

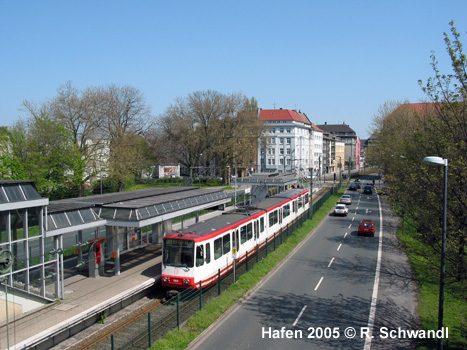

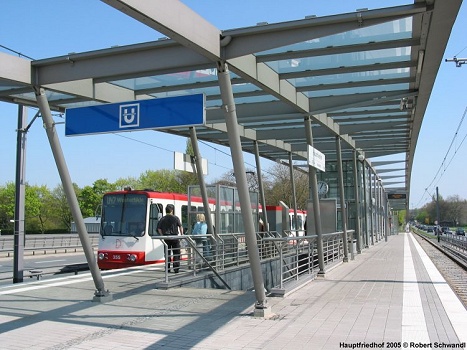

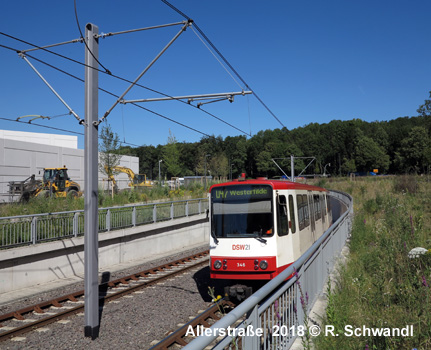

The combinded line U45/U46 is totally underground, and line U49 runs totally segregated from road traffic, except for one level crossing just east of its peak-only Hafen terminus. Line U42 has its own right-of-way, though with level crossings, from Grevel to Hombruch, except for a short street-running section between Harkortstraße and Hombruch-Hallenbad. Between Franz-Zimmer-Siedlung and Grevel (7 stops), U42 has been operating mostly elevated as a fast tram since 1976. Some stretches on U47 between Allerstraße and Aplerbeck and on U49 between Brechten and Brambauer are single-track.

The third trunk route was eventually brought into service in 2008, but being served by low-floor trams - see below.

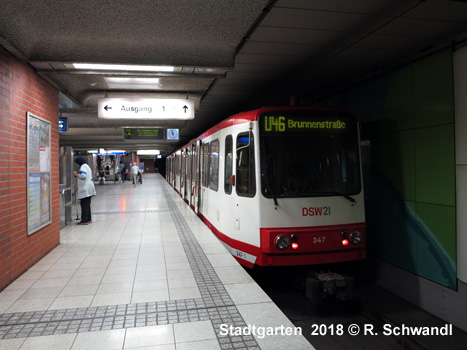

The Stadtbahn network has a total length of 55 km (17.5 km underground, 37.5 km above ground) with 23 underground stations and 59 surface stops.

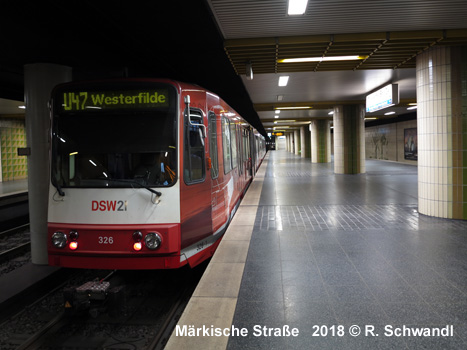

 Route 1 - U41 U45 U47 U49

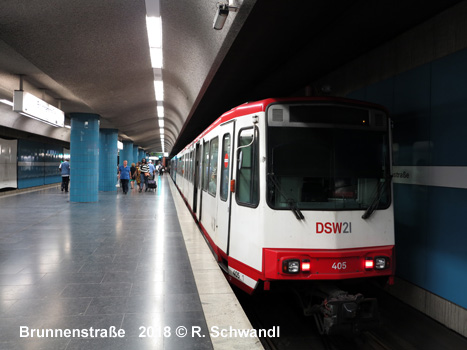

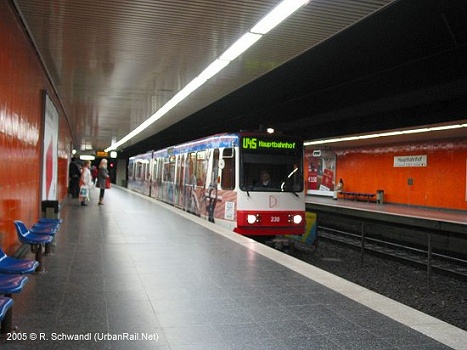

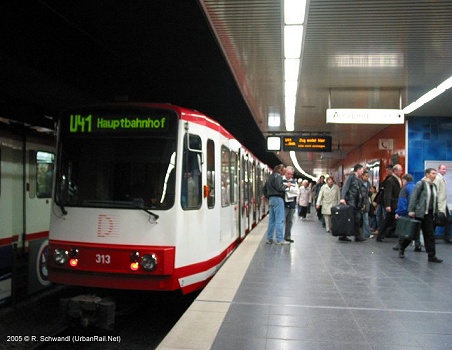

Stadtbahn Dortmund Stadtbahn Dortmund Stadtbahn Dortmund Stadtbahn Dortmund Stadtbahn Dortmund Stadtbahn Dortmund Stadtbahn Dortmund Stadtbahn Dortmund

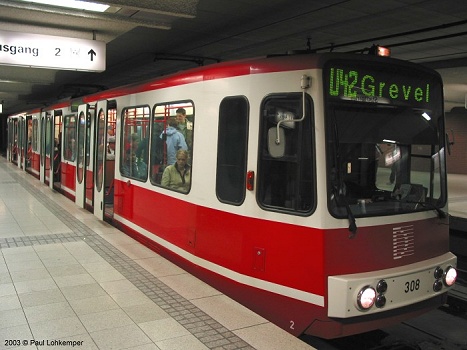

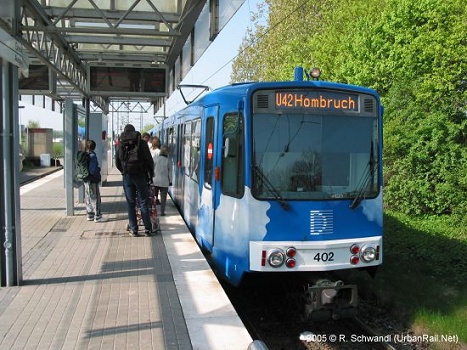

 Route 2 - U42 U46

Stadtbahn Dortmund Stadtbahn DortmundStadtbahn Dortmund Stadtbahn Dortmund Stadtbahn DortmundStadtbahn Dortmund Stadtbahn Dortmund Stadtbahn Dortmund

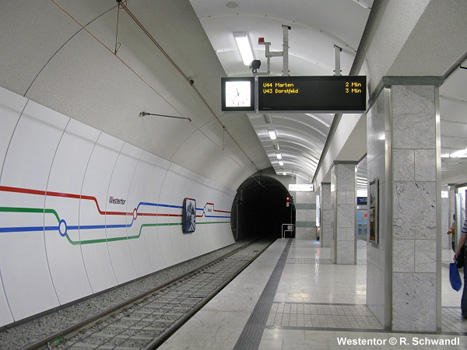

 Tram Tunnel - U43 U44

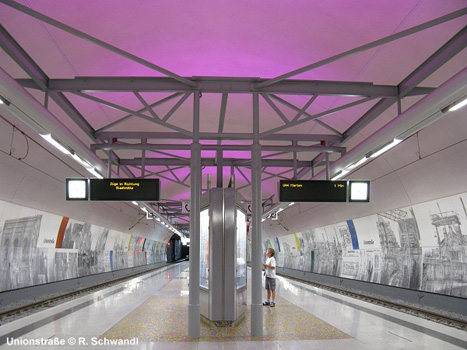

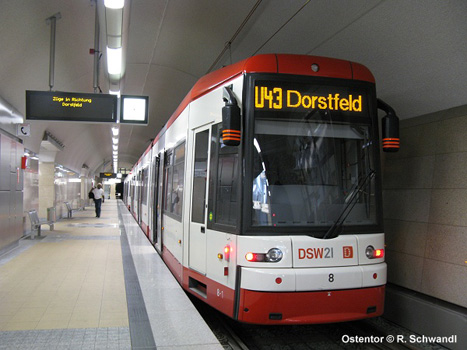

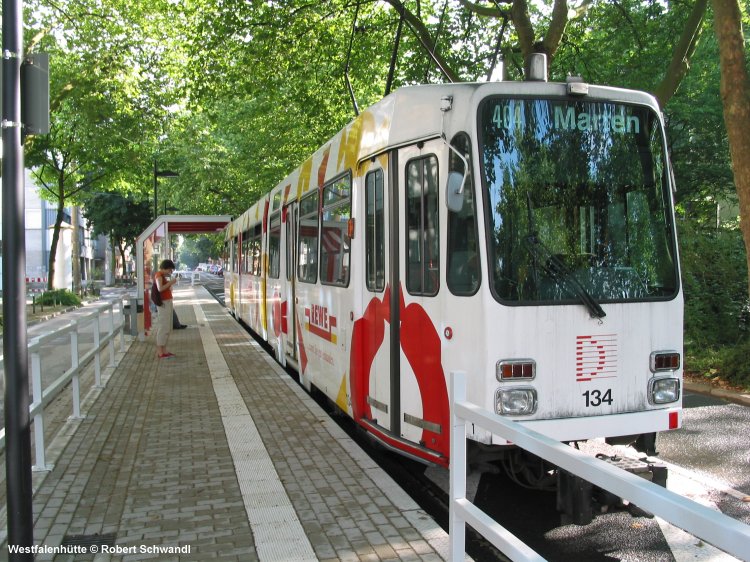

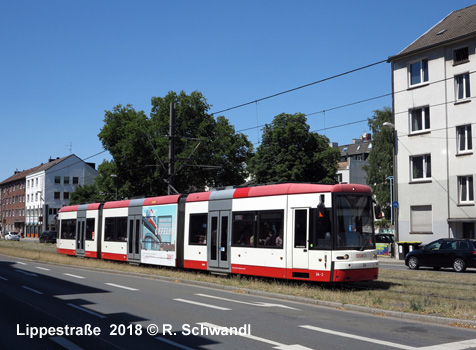

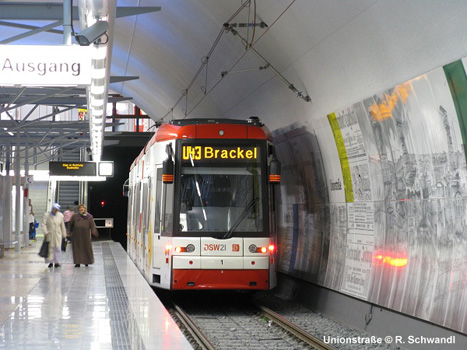

The Stadtbahn network is complemented by approx. 19.5 km of tram routes (former lines 403 and 404, which became U43 and U44 when the east-west tunnel was opened in 2008). Due to the tram-like alignment along their surface routes these lines cannot be classified as Stadtbahn lines, but remain conventional tram lines with an underground route through the city centre (including five underground stations):

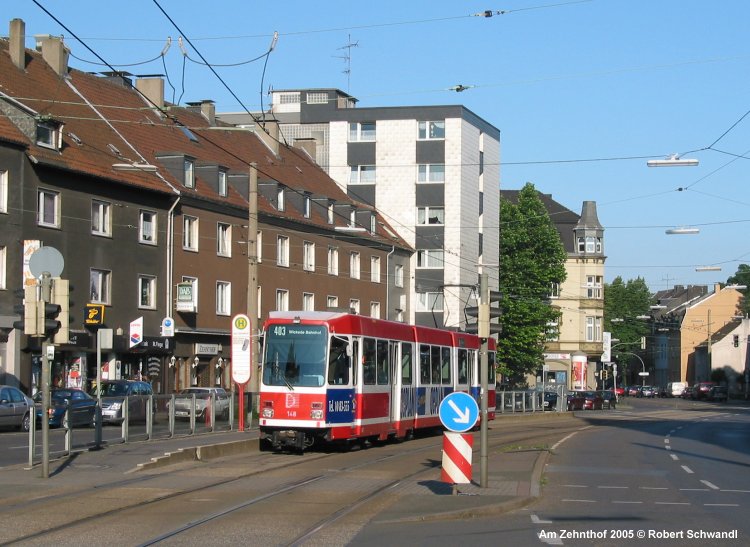

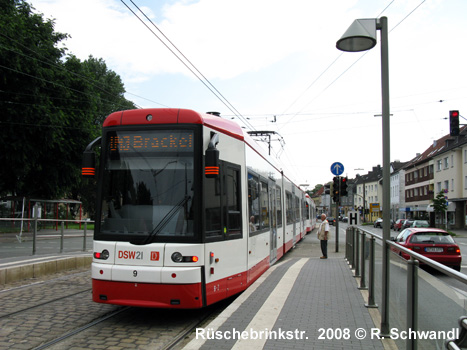

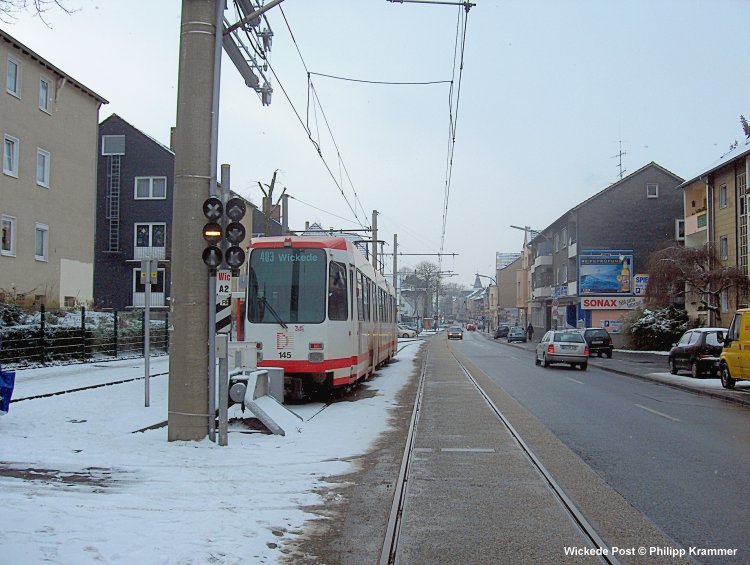

Tram Dortmund Tram Dortmund Tram Dortmund Tram Dortmund Tram Dortmund Tram Dortmund

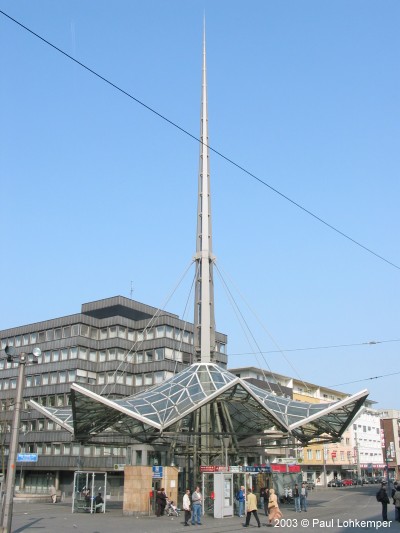

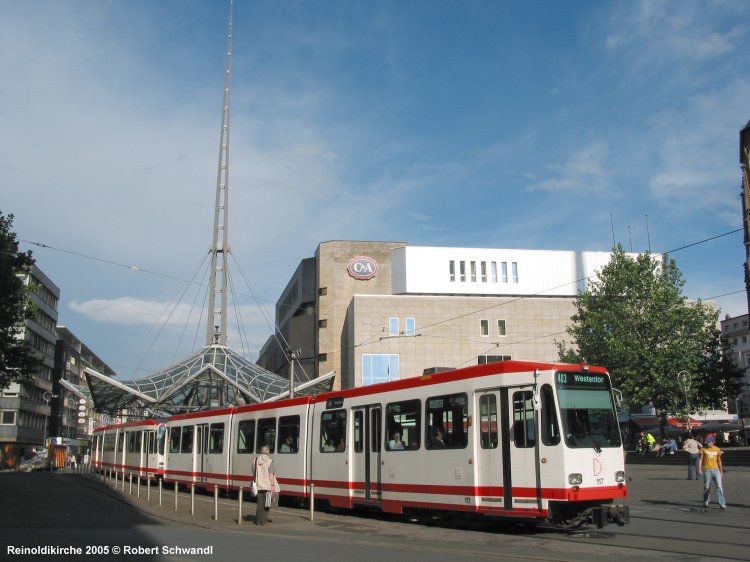

Westfalenhütte Am Zehnthof Reinoldikirche Kampstraße Wickede Post Reinoldikirche

 H-Bahn

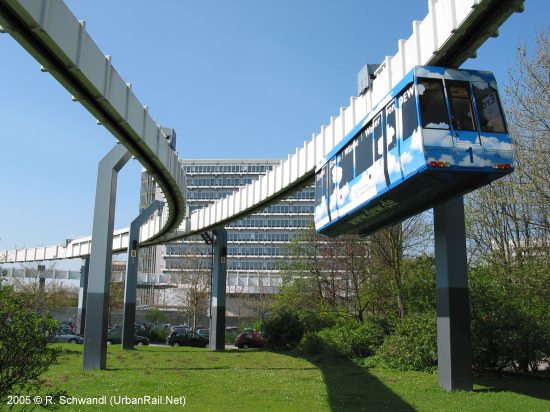

H-Bahn © R. SchwandlIn Dortmund another curious rail line can be found, the H-Bahn, a suspended automated line running from Technologiezentrum and S-Bahn station Dortmund-Universität across the University campus to the neighbourhood of Eichlinghofen (3 km). There are actually two lines operated:

Line 1 Technologiezentrum - S DO-Universität - Eichlinghofen
Line 2 Campus Nord - Campus Süd

Further plans would take it to Barop where it would link to Stadtbahn and S-Bahn.

 History

22/10/1969: Construction start on route 1
1976: 4.1 km rapid tram from Kirchderne to Grevel (6 stations)

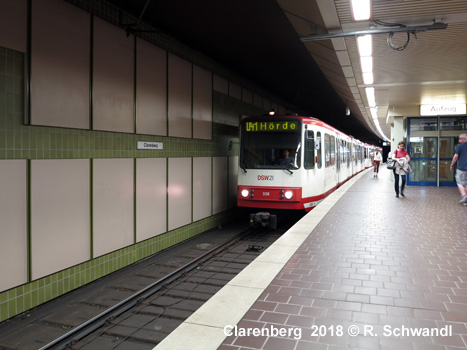

1983: Hörde - Clarenberg (1.5 km tunnel, 2 stations)
1984: Route 1/5 - 9.5 km Hacheney - Münsterstr. / Schützenstr. (11 stations, 3 stops)
16/04/1985: Construction start on route 2
1986: 2.7 km - Märkische Straße - Willem-van-Vloten-Straße
1990: 0.3 km - Remydamm
1992: 3.4 km Hafen - Huckarde Bushof (route 5) (1 station, 3 stops)
1992: 6.5 km - route 2 north (2.5 km in tunnel) Stadtgarten - Franz-Zimmer-Straße (4 stations, 6 stops) + upgraded fast tram to Grevel
1995 Stadtgarten - Städtische Kliniken (1 station)
1996 Stadtgarten - Polizeipräsidium (2 stations)
1998 Polizeipräsidium - Westfalenhallen (1 station)
2000/2002: Upgrading of route 1 to Brechten and Lünen-Brambauer
16/6/2002: Städtische Kliniken - Grotenbachstraße (Hombruch)

28/04/2008: Unionstraße - Ostentor (East-West Tunnel for low-floor tram operation)

14/11/2016: short tunnel between Hauptfriedhof and Allerstraße

 Books

New book!
Now just €4.50!


 Our books about Urban Rail in Germany

Tram Atlas DeutschlandRobert Schwandl:

TRAM ATLAS DEUTSCHLAND 6

- 06/2024, Berlin, ISBN 978 3 836573 74 9

- Detailed colour maps for more than 50 German tramway cities, illustrated with numerous photos

- Text German and English

- More details

Schnellbahnen in Deutschland/Metros in GermanyRobert Schwandl:

U-Bahnen in Deutschland

+ U-Stadtbahnen

- Feb 2019, Berlin, ISBN 978 3 836573 57 2

- Anything you need to know about German metro and light rail systems with underground sections, with detailed maps and hundreds of colour photos; 160 pages; Text German and English - More details



 Links

Bus und Bahn > Dortmund

Stadtbahnbau (Project site)

H-Bahn

Stadtbahn Dortmund at Wikipedia.de

Stadtbahn Rhein-Ruhr by Jochen Schönfisch

Nahverkehr in Dortmund

Dortmund Track Map at gleisplanweb.de

 Photos

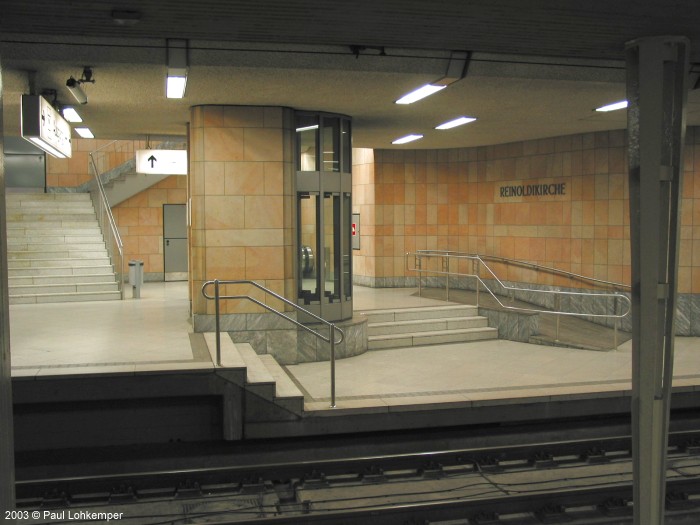

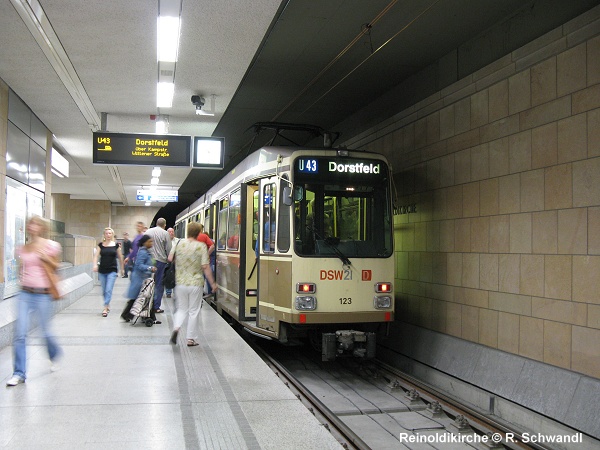

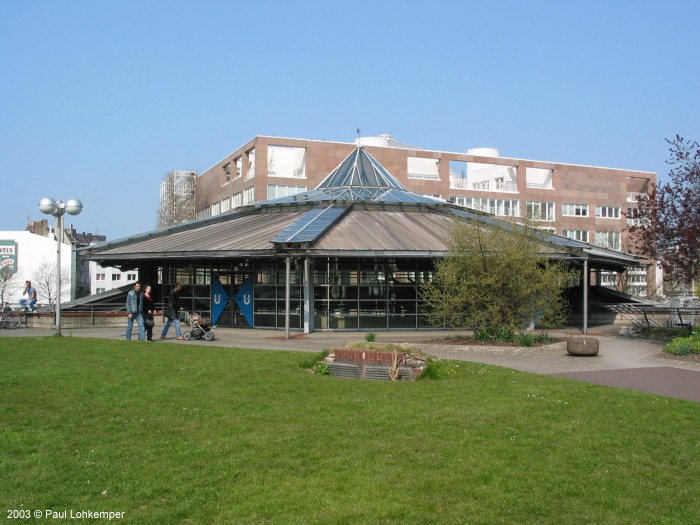

Reinoldikirche © Paul Lohkemper Reinoldikirche © Paul Lohkemper Stadtgarten © Paul Lohkemper Westfalenhallen © Paul Lohkemper
Photos (1-6) © Paul Lohkemper
 Videos
More official DSW21 videos here!




Universität Dortmund:

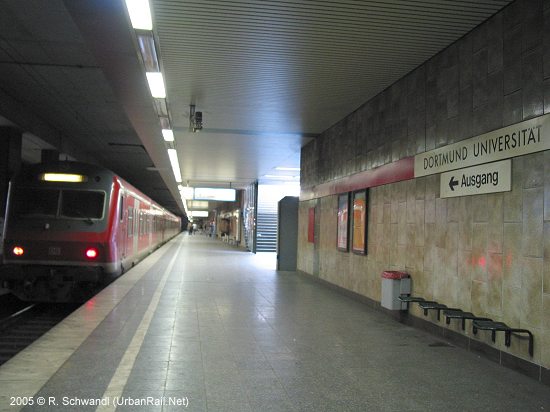

H-Bahn Technologiezentrum © R. Schwandl S-Bahn DO-Universität © R. Schwandl
