 Comunitat Valenciana . Spain

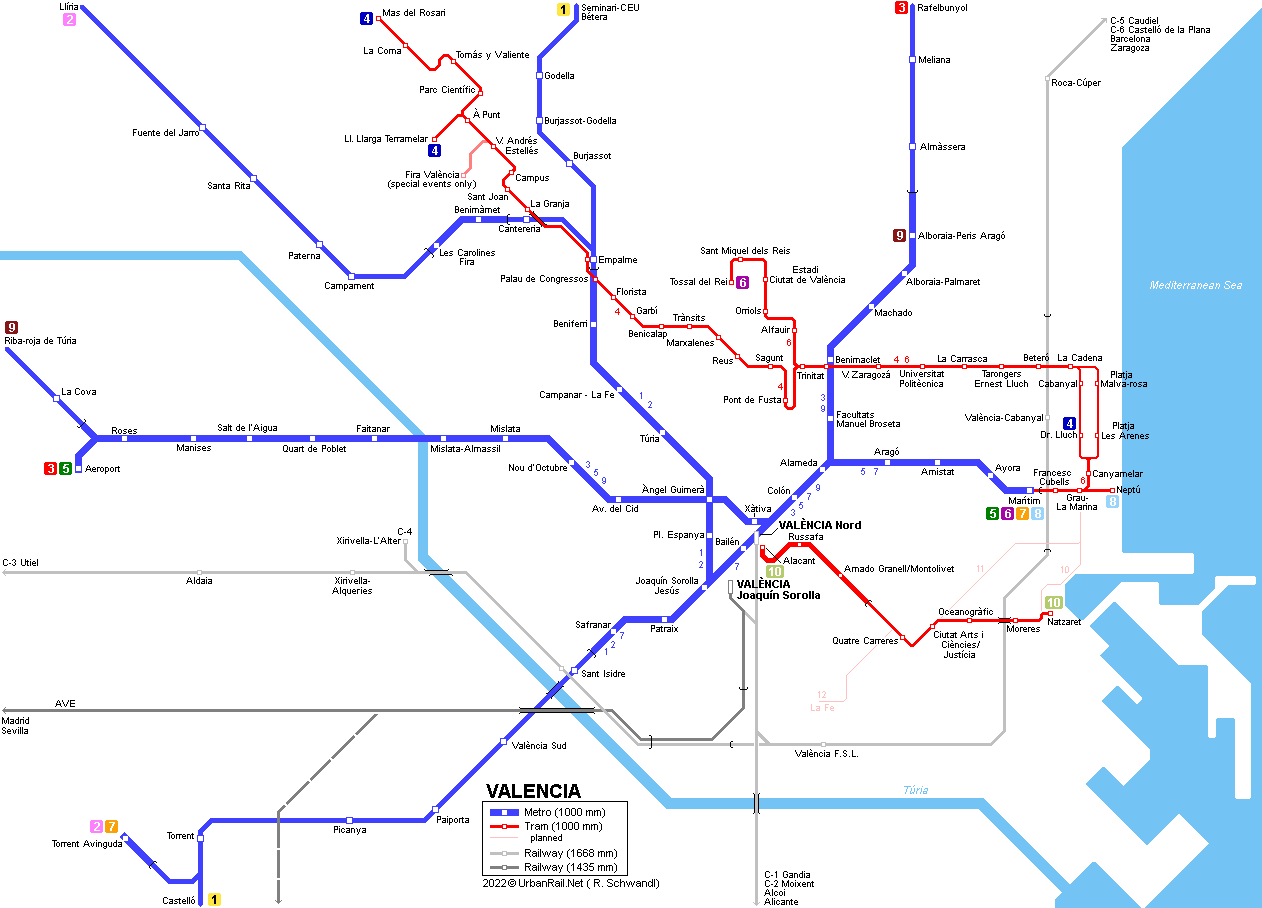

Valencia metro tram map
Click on map to expand to full network!


Valencia is the capital city of the autonomous region called Comunitat Valenciana, and with more than a million inhabitants in the metropolitan area, it is Spain's third largest city. Situated by the Mediterranean Sea it's an important harbour and industrial centre on the east coast of Spain. The city has a unique park in the former river bed of the Turia river under which two stations, Túria and Alameda, are situated. The Comunitat Valenciana is a bilingual region, with most station names now using the local Valencian (Catalan) variant, although some are called by their Spanish name.

The Valencia Metro has been developed out of a former regional narrow-gauge network opened as soon as 1888 and called El Trenet de València. Still under FEVE's administration in the early 1980's, it was decided to build a tunnel through the city centre in order to connect two of the northern lines with the one in the south. After all narrow-gauge lines were taken over by the Valencian Government in 1987, Ferrocarrils de la Generalitat Valenciana (FGV) opened the cross-city tunnel on 8 Oct 1988, 100 years after the inauguration of the first narrow-gauge line in Valencia, and began to call the new service Metro de Valencia.

Apart from the FGV metro system, RENFE (Spanish National Railways) runs a regional service (Cercanías) which is especially busy on the southern lines C1 and C2. Xàtiva on Lines 3/5/9 provides a direct interchange in the city centre between RENFE trains and FGV metro.

 North-South Route: Lines 1 - 2 - 7

Although this north-south line has a very regional character outside the city, it can be considered a metro line within the city, i.e. between Empalme (formerly Ademuz) in the north and Torrent in the south with trains every 7.5 minutes (Beniferri - Safranar underground 6.7 km).
Before 8 Oct 1988, the three northern lines to Llíria, Bétera and Rafelbunyol left Valencia from Pont de Fusta (now on tram line 4). On that day the city tunnel was taken into service between Empalme and Safranar (formerly Hospital). Previously, the southern line had its city terminus at Jesús (now Joaquín Sorolla). Between 1998 and 2015, both northern branches were labelled "Line 1", but eventually the Llíria branch recuperated its "Line 2" tag. At the same time, the Torrent Avinguda - Marítim-Serrería service was rebranded Line 7.

Lines 1/2 can be divided into 4 sectors:

_ Empalme - Bétera 14 km, 11 stations, 5.8 km double-track (Empalme - Seminari), 8.2 km single-track (Seminari - Bétera), regional service.
_ Empalme - Llíria 24 km, 16 stations, 4 km double-track (Empalme - Paterna incl. approx. 1.5 km underground in Benimàmet), 20 km single-track (Paterna - Llíria), suburban/regional service
_ Empalme - Torrent Avinguda 15.8 km (6.7 km underground through Valencia + 2.3 km in Torrent), 15 stations, metro service.
_ Torrent - Villanueva de Castellón 43.8 km, single-track, regional service.

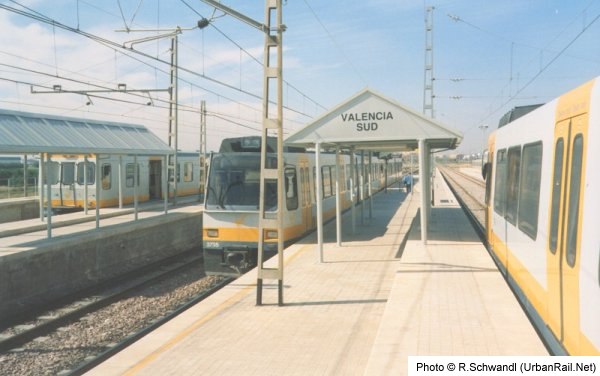

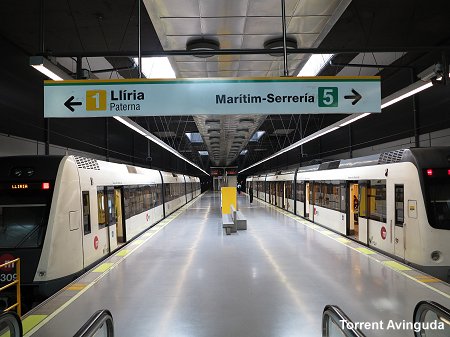

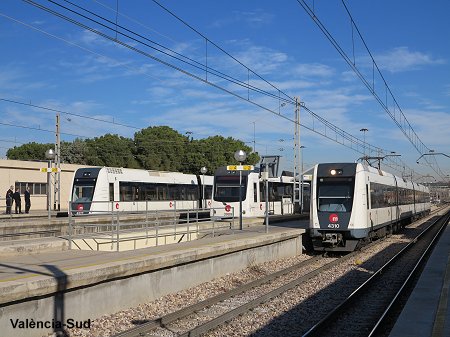

Valencia metro Torrent Valencia Sud metro

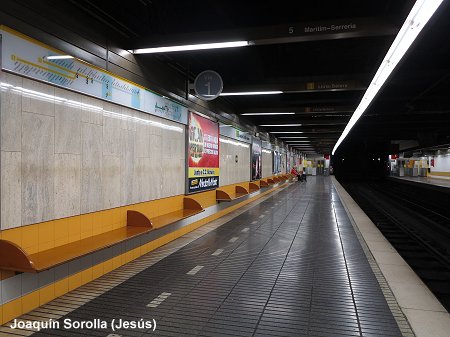

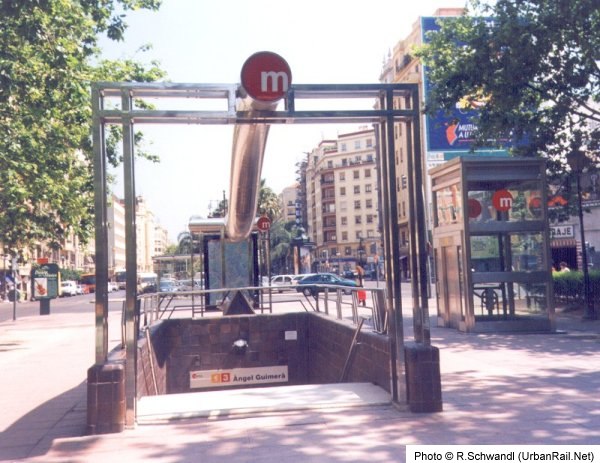

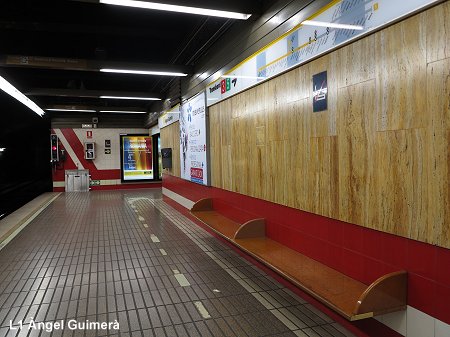

Valencia metro Joaquín Sorolla Jesús Valencia metro Angel  Guimerà

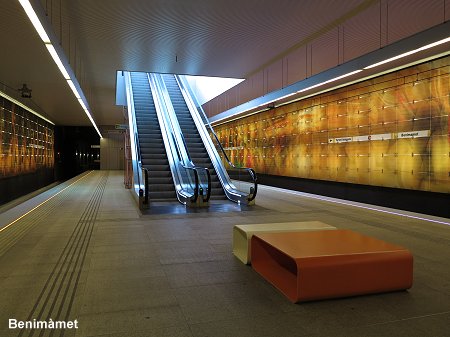

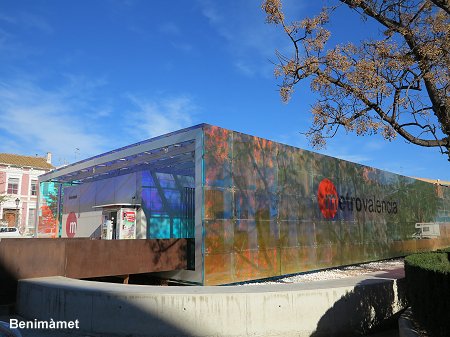

Valencia metro Benimàmet Valencia metro Benimàmet
Photos © Robert Schwandl

Valencia metro

 East-West Route: Lines 3 - 5 - 9

AlamedaLine 3 follows an older regional line to Rafelbunyol, which also used to have its city terminus at Pont de Fusta (now on tram line T4). The city section was built as a modern metro line initially running underground from Alboraya-Palmaret into the city to Alameda (1995, 3 km).

In 1998, the first stretch of what was originally planned as line 5, opened between Alameda and Av. del Cid (3.2 km) with a branch from Colón to Jesús (now Joaquín Sorolla; 2.4 km) to allow through trains between Torrent in the south and Palmaret in the north. Another section towards the west (to Mislata-Almassil, 3 stations, 2.4 km) opened in 1999. Line 5 was originally designed to run from Mislata to Cabanyal Railway Station in the east. This line serves the central shopping district around Colón station and the main railway station at Xàtiva.

Plans for the eastern section between Alameda and Cabanyal were changed in the late 1990s. Instead of going to Cabanyal Railway Station (ADIF is planning a cross-city tunnel which would not serve that station), the new Line 5 was to become similar to a German Stadtbahn running under Santos Justos y Pastor Streets with light rail vehicles using high platforms in tunnel stations but lower platforms at the three eastern stops planned on street level. Eventually the line was built underground as far as Ayora and opened in April 2003. In April 2007, it was extended by one underground station to Marítim-Serrería, where transfer is provided across the platform to tram lines 6 and 8. The tram line from Marítim Serrería to Neptú (now Marina Reial Joan Carles I) opened on 17 April 2007.

In late 2002, a western extension of Line 5 under the Turia river towards Manises Airport was approved. This extension, which is totally underground, replaced the former Renfe line, which was handed over to FGV in early 2005 (service was suspended on 1 April 2005). The Airport line was brought into service in April 2007.

The northern line 3 tunnel was extended in Dec. 2010 by 1.6 km, with two new underground stations in Alboraya.

Finally, in early 2015, another western extension was added between Manises and Riba-roja de Túria. The 9.5 km single-track surface section connects to the existing line near the airport and follows the former Renfe line. This extension introduced Line 9, running half-hourly between Riba-roja de Túria and Alboraya-Peris Aragó. At the same time, the Torrent Avinguda - Marítim-Serrería service was rebranded Line 7.

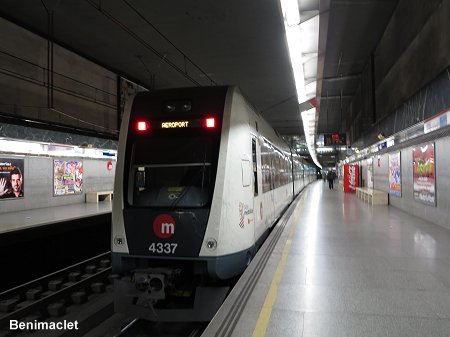

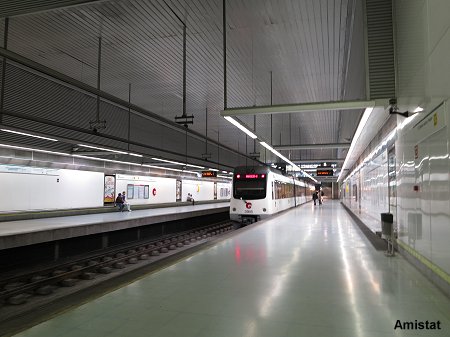

Valencia metro Benimaclet Valencia metro Amistat

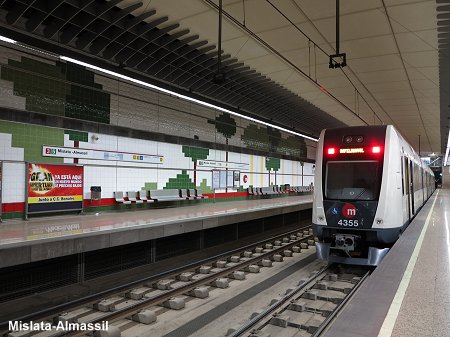

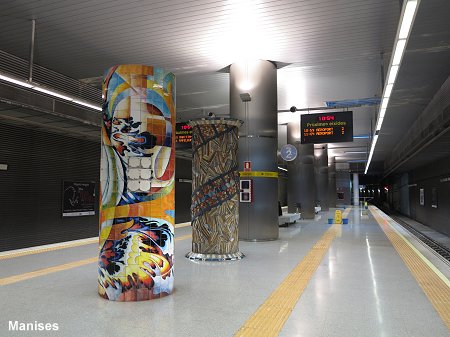

Valencia metro Mislata-Almassil Valencia metro Manises

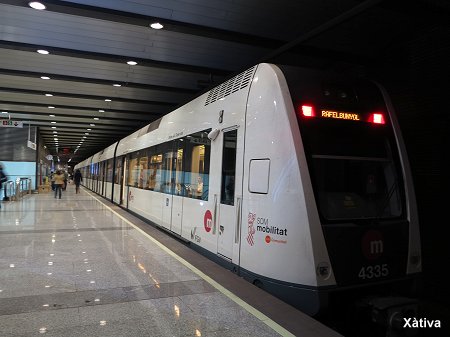

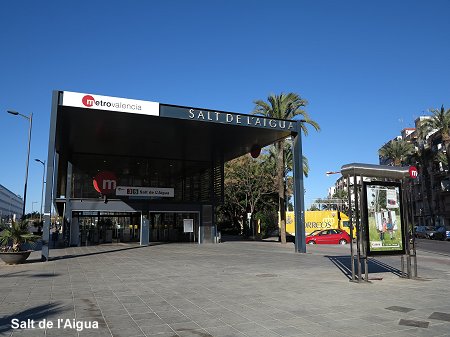

Valencia metro Salt de l'Aigua Valencia metro Xàtiva
Photos © Robert Schwandl

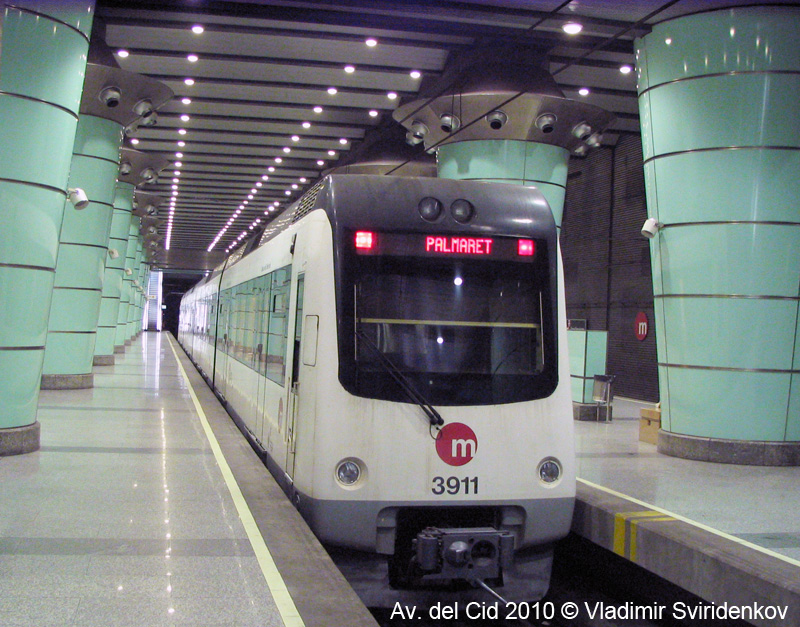

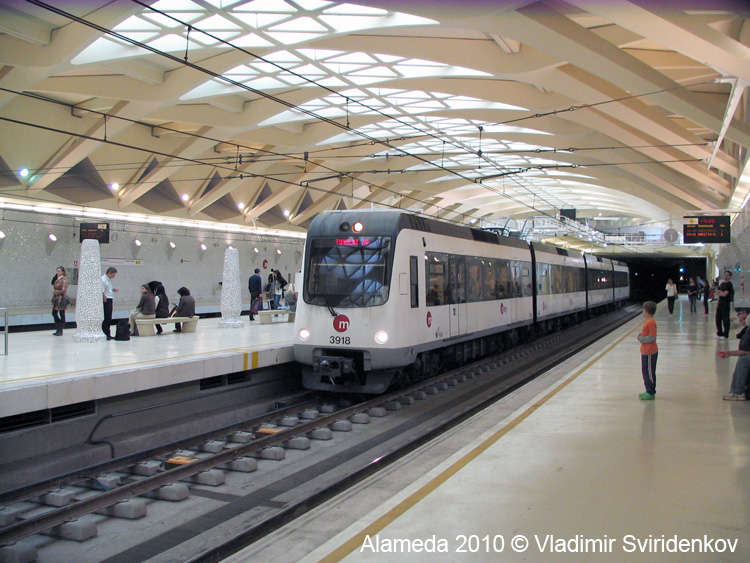

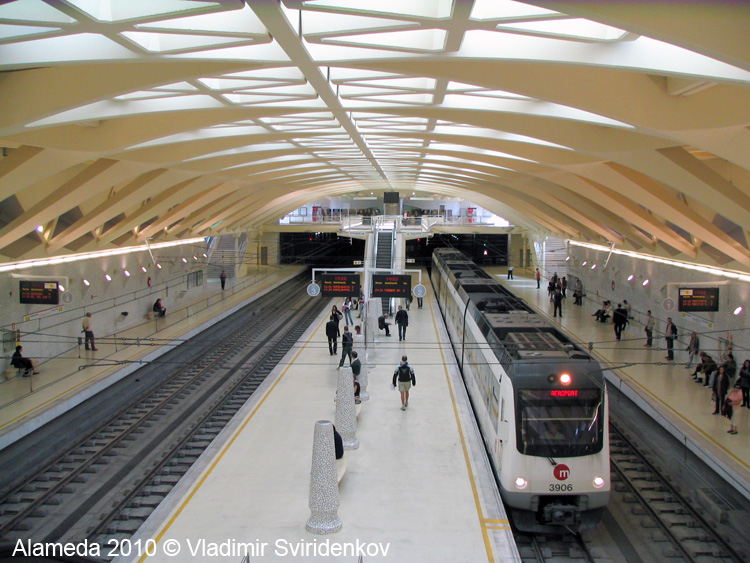

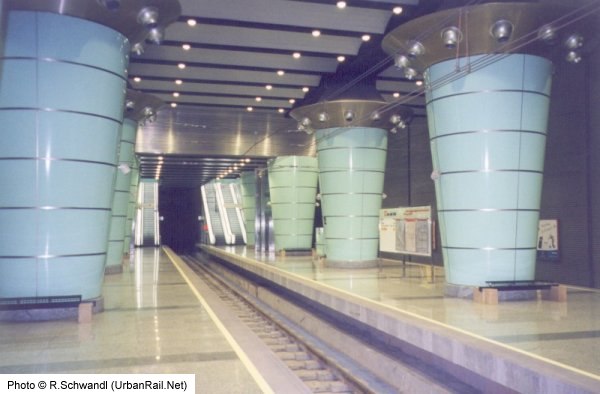

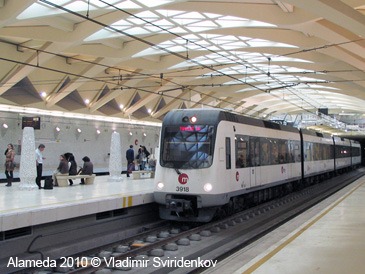

Alameda Av. del Cid
(1)-(3) © Vladimir Sviridenkov

08 Oct. 1988: L1/2 [Bétera/Llíria -] Ademuz (now Empalme) - Hospital [- Castelló de la Ribera (later Villanueva de Castellón, now Castelló)]
05 May 1995: L3/9 Alameda - Alboraia-Palmaret [- Rafelbunyol]
16 Sept 1998: L3/5/9 Alameda - Av. del Cid / Jesús (now Joaquín Sorolla) [-Torrent]
20 May 1999: L3/5/9 Av. del Cid - Mislata-Almassil
30 April 2003: L5/7 Alameda - Ayora (2.3km)
22 Sept 2004: L2/7 Torrent - Torrent Avinguda (2.3 km)
03 Oct 2005: L7 Bailén station added
02 April 2007: L5/7 Ayora - Marítim Serrería (now Marítim)
18 April 2007: Line 3/5 Mislata-Almassil - Aeroport
12 Dec 2010: L3/9 Alboraia-Peris Aragó and Alboraia-Palmaret stations put underground
15 May 2011: L2
Benimàmet and Les Carolines-Fira stations put underground
06 Mar 2015: L9 Roses - Riba-roja de Túria
31 July 2018: L9 València la Vella added

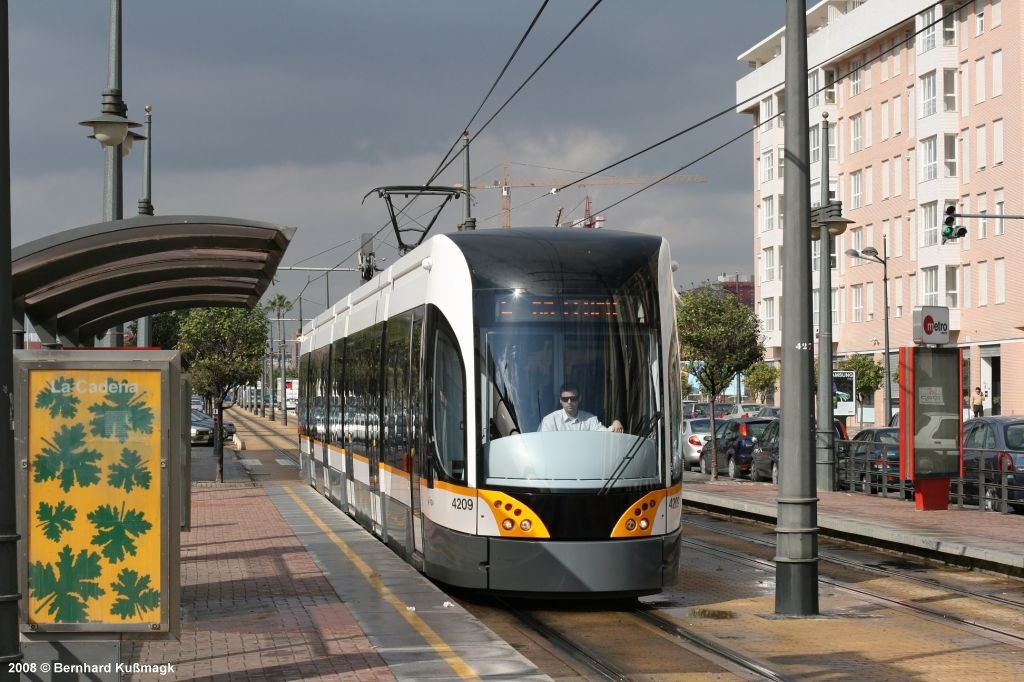

Valencia Tram © Bernhard KußmagkLine 4 is a standard tram line that runs east-west through the northern part of the city connecting Line 1 at Empalme with Pont de Fusta in central Valencia (at the other side of the river bed park), the new University campus developments and the beaches. An extension from Empalme to TVV (Valencia TV, now À Punt) opened in March 1999. A further extension to Fira de Mostres (Trade Fair) was taken into service in 2000 (only served during trade fair periods), and to Mas del Rosari and to Lloma Llarga Terramelar in 2005.

Line 6 was brought into service on 28 Sept 2007, running on a new 2.4 km section to Orriols and Torrefiel, with most of the rest being shared with line T4. In the port area it links with line 8, both terminating underground at Marítim.

Line 10 is part of a once planned partly underground north-south route (previously referred to as Line 2) which was meant to run from Orriols in the north (now line 6) to the Science City and Natzaret in the south. Coming from Orriols in the north (Ciutat de Valencia stadium) it should have entered the north-south tunnel at Pont de Fusta. There would have been underground stops in the old city centre at Museus (under the old riverbed), Carme and Mercat before reaching Xàtiva. A new central railway station is still planned to be built a bit further south from its current location, between Bailén and the new underground terminus Alacant.
The new line 10, for now isolated from the rest of the network, runs underground along Av. del Regne de Valènica, turning right into Luís de Santángel and General Urrutia with two underground stations in the Russafa district before coming to the surface near the road intersection Gral. Urrutia/Germans Maristes. From there it continues on the surface to the Ciutat de les Ciències and the Oceanogràfic, now major tourist attractions, and then on a viaduct across the mainline railway to terminate in the Natzaret neighbourhood. Construction was started in 2006, but work had to be suspended in 2011 during Spain's financial crises. After its resumption in 2019, the Alacant - Natzaret section (5.3 km) was finally brought into service in May 2022.

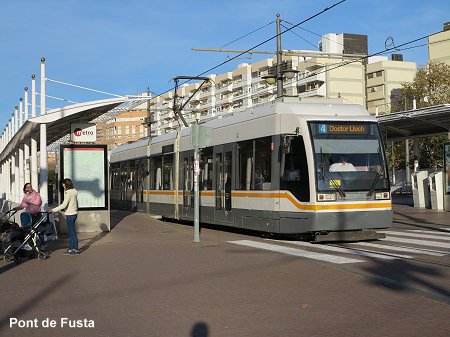

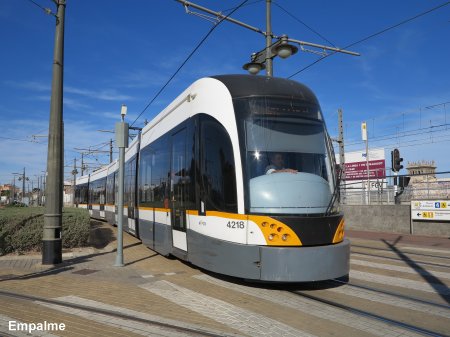

valencia tram empalme valencia tram pont de fusta

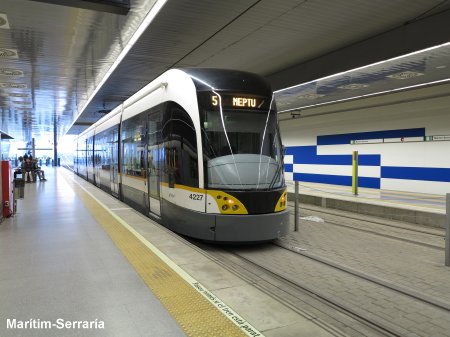

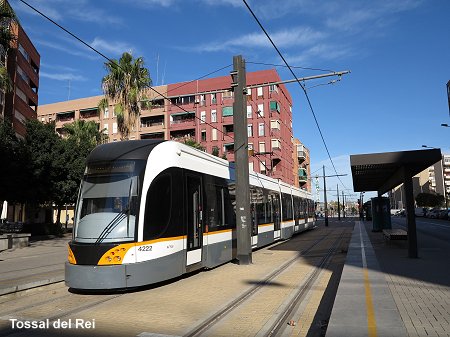

valencia tram tossal del rei valencia tram marítim serraría
Photos © Robert Schwandl

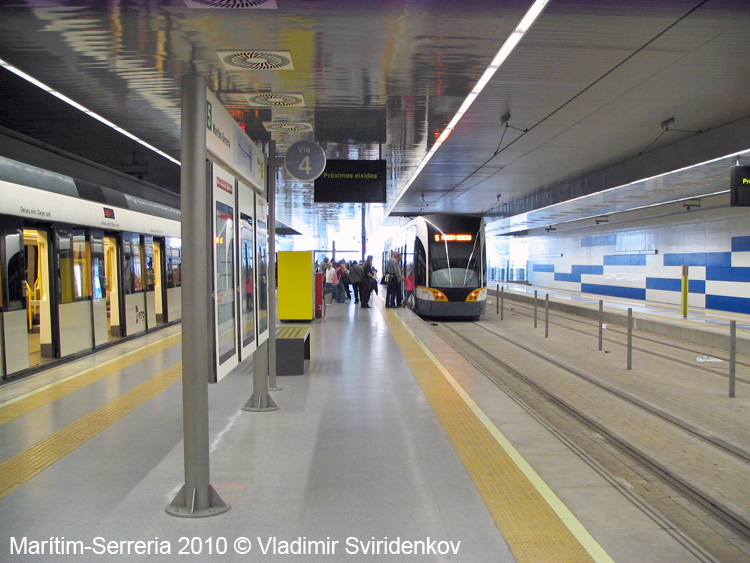

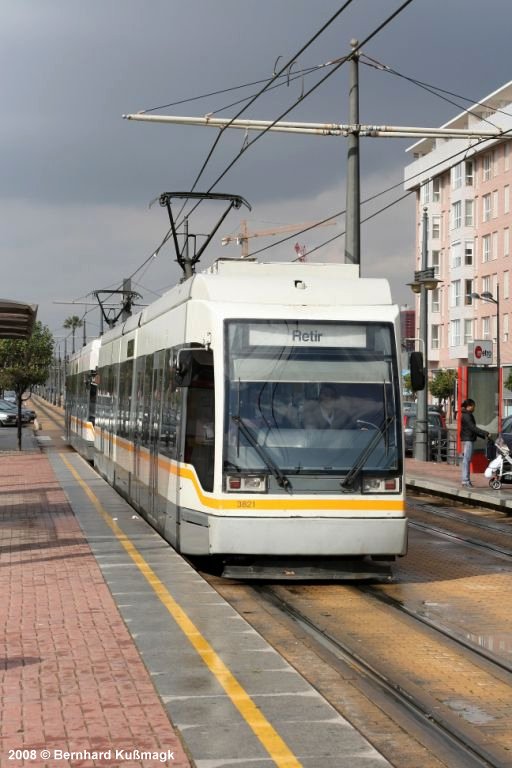

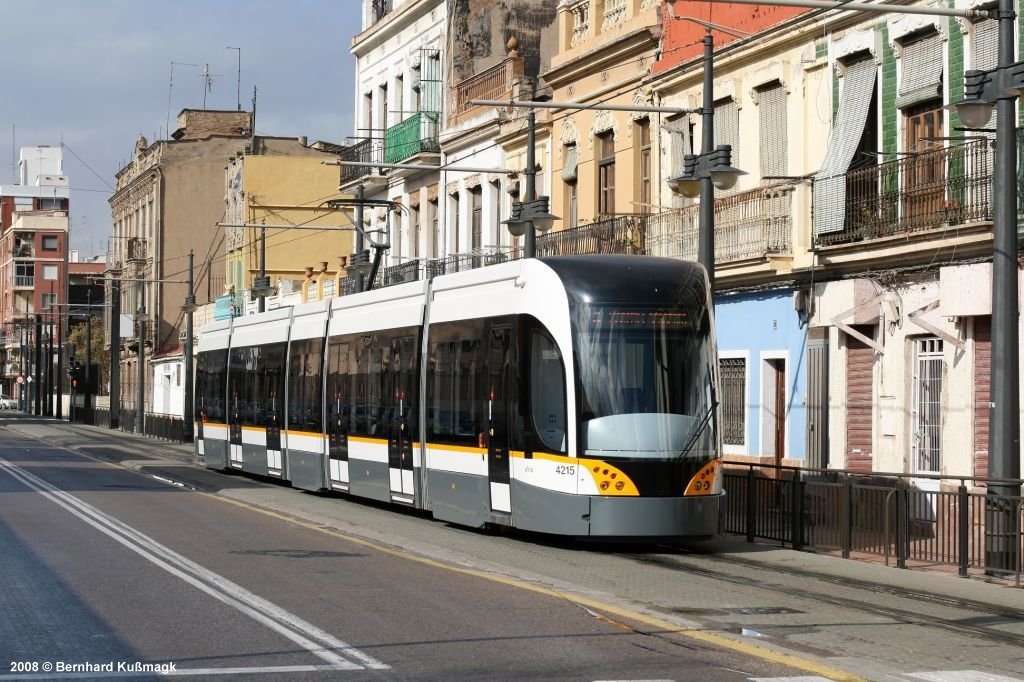

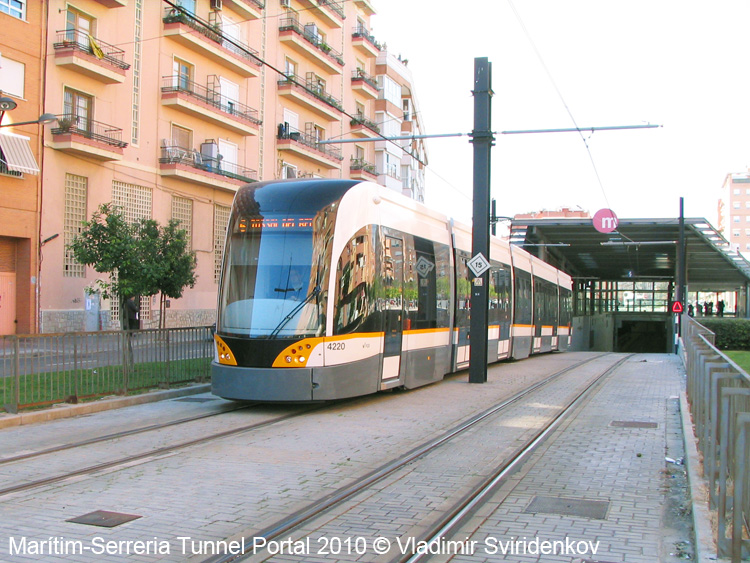

Valencia Tram © Bernhard Kußmagk Valencia Tram © Bernhard Kußmagk Marítim-Serreria Marítim-Serreria
(1)-(3) 2008 © Bernhard Kußmagk; (4)-(5) © Vladimir Sviridenkov

 Metro & Tram Projects


- In conjunction with the opening of line 10, several branches have been announced: line 10 would be extended from Natzaret to link up with the existing tram network at Grau-La Marina, while line 11 would reach the port area via a more direct route; and finally line 12 would branch off to serve La Fe Hospital.



metrovalencia (FGV) (Official site)

Renfe Cercanías

Agència Valenciana de la Mobilitat

CITMA - Infrastructure Department

Metro Valencia at Wikipedia.es

BLOG: Your webmaster's impressions of Valencia's urban rail system: 2012 / 2015

2 Articles by Rafael Alcaide on the Valencia Metro:

"El trenet de Valencia (1888-2000) la dimensión histórica y tecnológica de un transporte público"

"El ferrocarril en España (1829-1844). Las primeras concesiones..."


Metro & Tram Atlas SpainRobert Schwandl:

METRO & TRAM ATLAS Spanien | Spain

Alicante, Barcelona, Bilbao, Cádiz, Donostia/San Sebastián, Granada, Madrid, Málaga, Murcia, Palma, Parla, Sevilla, Sóller, Tenerife, Valencia, Vitoria-Gasteiz, Zaragoza

Numerous colour images, detailed network maps, Text deutsch/English, ISBN 978 3 936573 46 6, Sept. 2015, EUR 19.50

More info

Robert Schwandl: METRO & TRAM ATLAS SPAIN.- RSV, Berlin, 2015 - ISBN 978 3 936573 46 6

Robert Schwandl: METROS IN SPAIN. The Underground Railways of Madrid, Barcelona, Valencia and Bilbao.- Capital Transport Publishing, London, July 2001- ISBN 1854142429

Rafael Alcaide González: El Trenet de València
Edición Lluís Prieto, Monografías del Ferrocarril 9, Barcelona, 1998. ISBN 84-921005-8-3
This book narrates the full history of Valencia's metro (in Spanish) with lots of old and new pictures.

 Older Photos

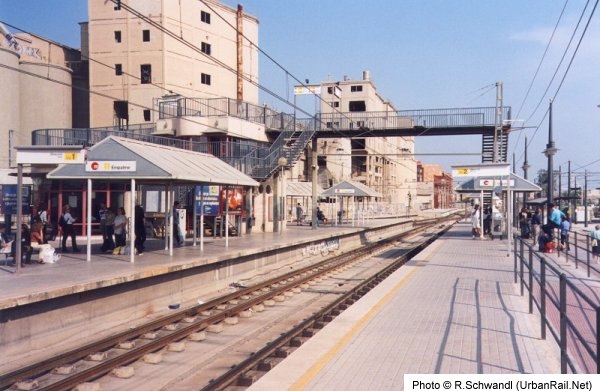

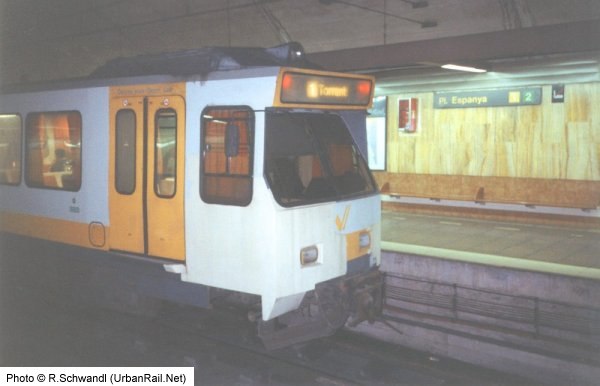

Angel Guimerà © UrbanRail.Net Pl. d'Espanya © UrbanRail.Net ex-Empalme © UrbanRail.Net València Sud © UrbanRail.Net

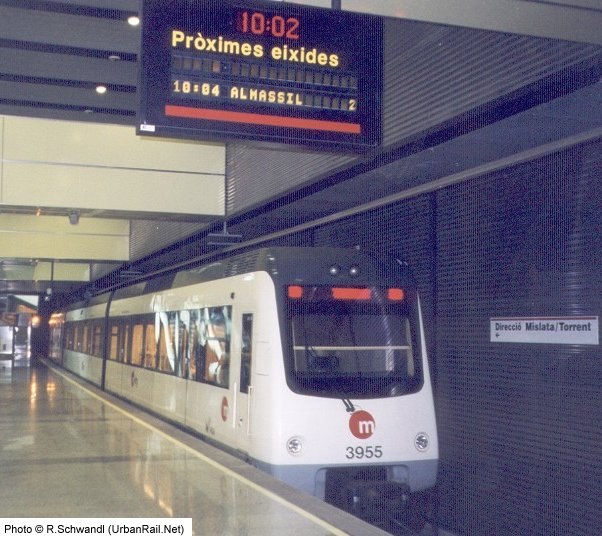

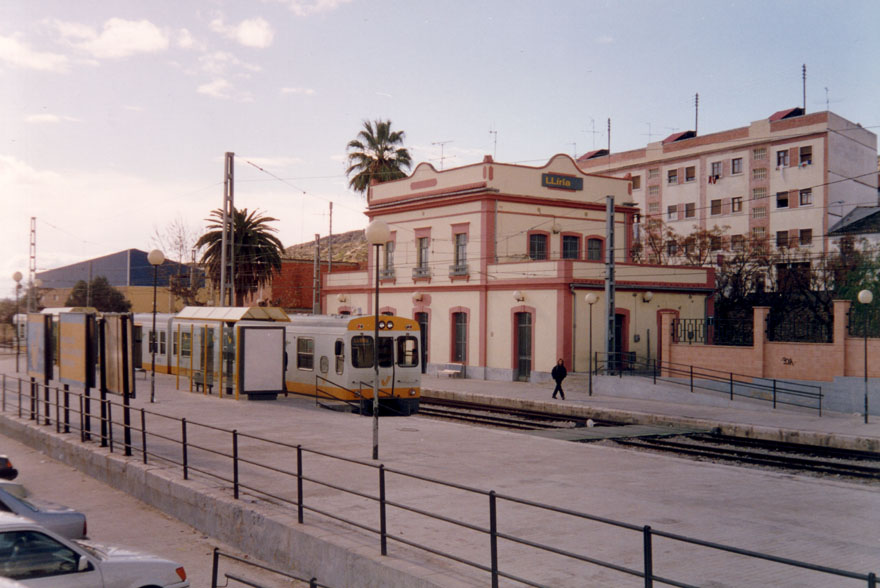

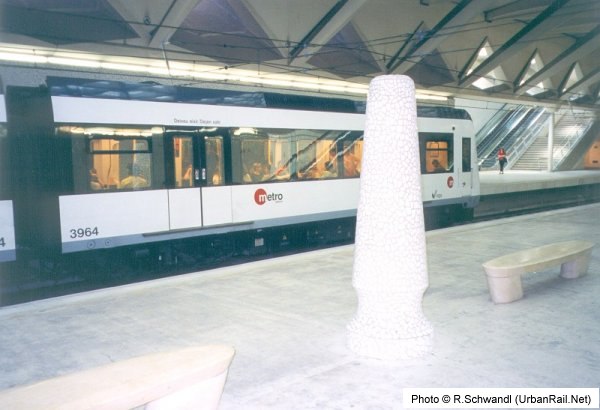

Alameda © UrbanRail.Net Colón © UrbanRail.Net Mislata © UrbanRail.Net Llíria station © Joan-Josep

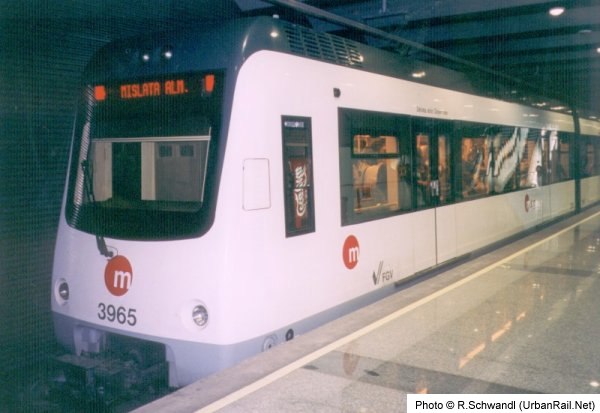

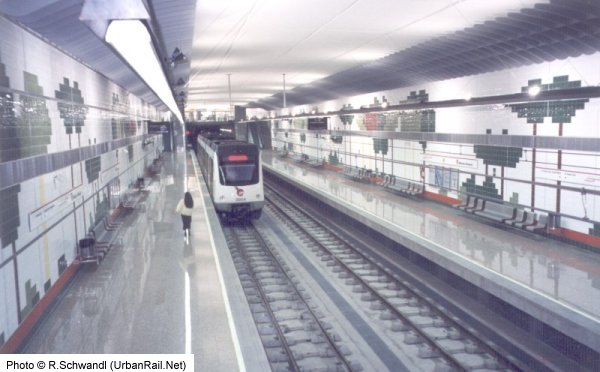

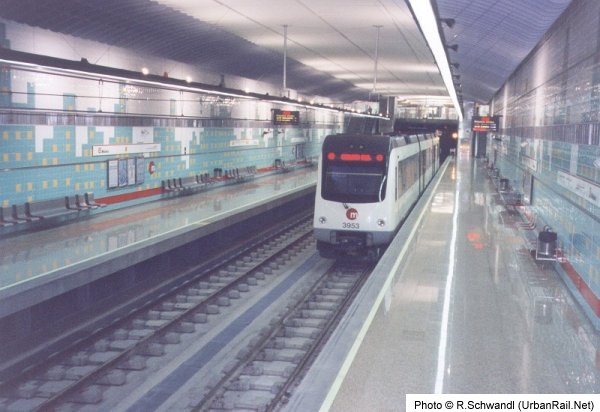

Av. del Cid © UrbanRail.Net Mislata-Almassil © UrbanRail.Net Xàtiva © UrbanRail.Net

1998-2000 © UrbanRail.Net

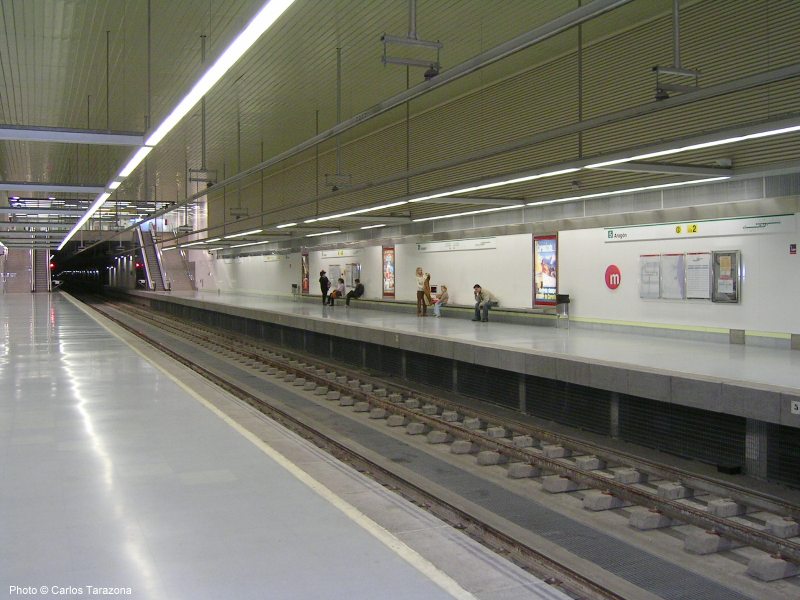

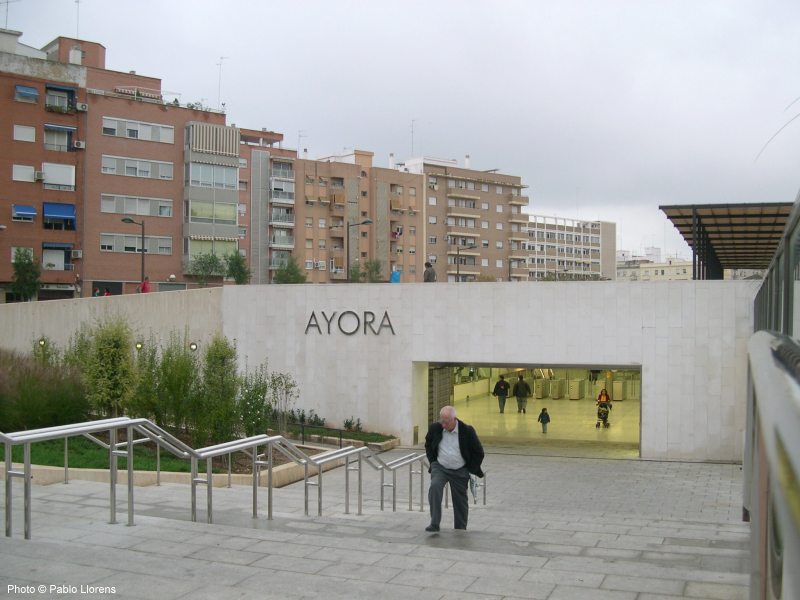

L5 Ayora © P. Llorens L5 - Aragón © C. Tarazona
