Línea 5
 UrbanRail.Net > Europe > Madrid

Metro Madrid > Line 5

 Casa de Campo

22/10/2002

Line 5 now terminates single-track at Casa de Campo between the Line 10 tracks, providing perfect interchange in both directions. There is actually second track for Line 5 which has temporarily been covered by the widened platform.

L5 Casa de Campo
 Campamento

04-02-1961

Campamento is an original station of the former 'Suburbano' from Plaza de España to Carabanchel. The tunnel mouth is at the southern end of the platforms.

L5 Campamento

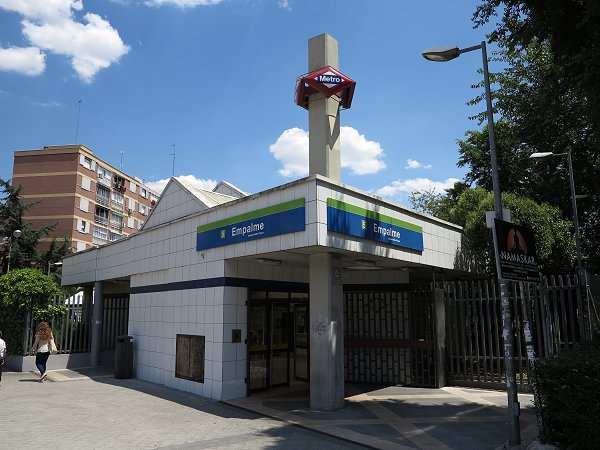

 Empalme

04-02-1961

Empalme station lies in a cutting and was part of Line 10 until 2002.

L5 Empalme

L5 Empalme

 Aluche

04-02-1961

Aluche is a 2-track elevated station with an island platform, where until 2002 Lines 5 and 10 terminated. There is small depot just south of the station.

The Cercanías station (C-5) lies underground perpendicularly to the metro station.

L5 Aluche

L5 Aluche

 Eugenia de Montijo

27/10/1999

Eugenia de Montijo station was added on the existing line next to the tunnel mouth of the former 'Suburbano'.


 Carabanchel   04-02-1961
 Vista Alegre   05-06-1968
 Oporto 05-06-1968 L5 Oporto
 Urgel   05-06-1968
 Marqués de Vadillo

05-06-1968

Most stations on Line 5 have a similar design. After recent refurbishment they can be distinguished by varying colours.

L5 Marqués de Vadillo
 Pirámides

05-06-1968

Between Marqués de Vadillo and Pirámides, Line 5 crossed under the River Manzanares before climbing up towards the city centre.


 Acacias

05-06-1968

East of Acacias station, Line 5 takes a sharp turn to reach Puerta de Toledo. This was necessary to create an interchange with Line 3, but also due to the severe gradient between the river and Puerta de Toledo.


 Puerta de Toledo   05-06-1968
 La Latina

05-06-1968

At 28 m below ground La Latina is one of the deepest stations on the small-profile network.


 Ópera 05-06-1968

L5 Ópera

L5 Ópera

 Callao 05-06-1968
   Gran Vía

02-03-1970

From 2008, Gran Vía station will allow transfer to the Cercanías station currently under construction at Sol/Gran Vía on the second Renfe north-south tunnel.


   Chueca   02-03-1970
   Alonso Martínez

02-03-1970

L5 A. Martínez

L5 A. Martínez

   Rubén Darío   02-03-1970
   Núñez de Balboa 02-03-1970

L5 Núñez de Balboa

L5 Núñez de Balboa

   Diego de León 02-03-1970
   Ventas

28-05-1964

The section from Ventas to Ciudad Lineal opened as part of Line 2 in 1964, and was integrated in Line 5 in 1970.

L5 Ventas

L5 Ventas

   El Carmen   28-05-1964
   Quintana   28-05-1964
   Pueblo Nuevo 28-05-1964 L5 Pueblo Nuevo
   Ciudad Lineal   28-05-1964
   Suanzes   18-01-1980
   Torre Arias   18-01-1980
   Canillejas   18-01-1980 L5 Canillejas
   El Capricho   24-11-2006

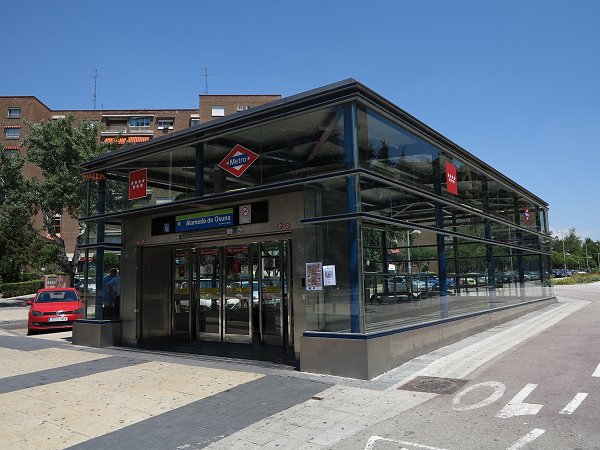

 Alameda de Osuna   24-11-2006

L5 Alameda de Osuna

L5 Alameda de Osuna

L5 Alameda de Osuna



Special Features of Line 5:

Total length: 23.2 km, 32 stations

Small profile line with 90 m long platforms (6-car trains of class 2000 in service).

The section from Ventas to Ciudad Lineal opened as part of Line 2 in 1964, and was integrated in Line 5 in 1970.

The section from Campamento to Carabanchel opened in 1961 as part of the 'Suburbano', later converted to Line 10. Aluche - Carabanchel was transferred to Line 5 in 1968, and Aluche - Campamento, together with the new terminus Casa de Campo, in 2002.
